Chapter 6: IP Address Assignment
724-746-5500 l www.blackbox.com
19
Configuration Function Bar
Port Connection Status

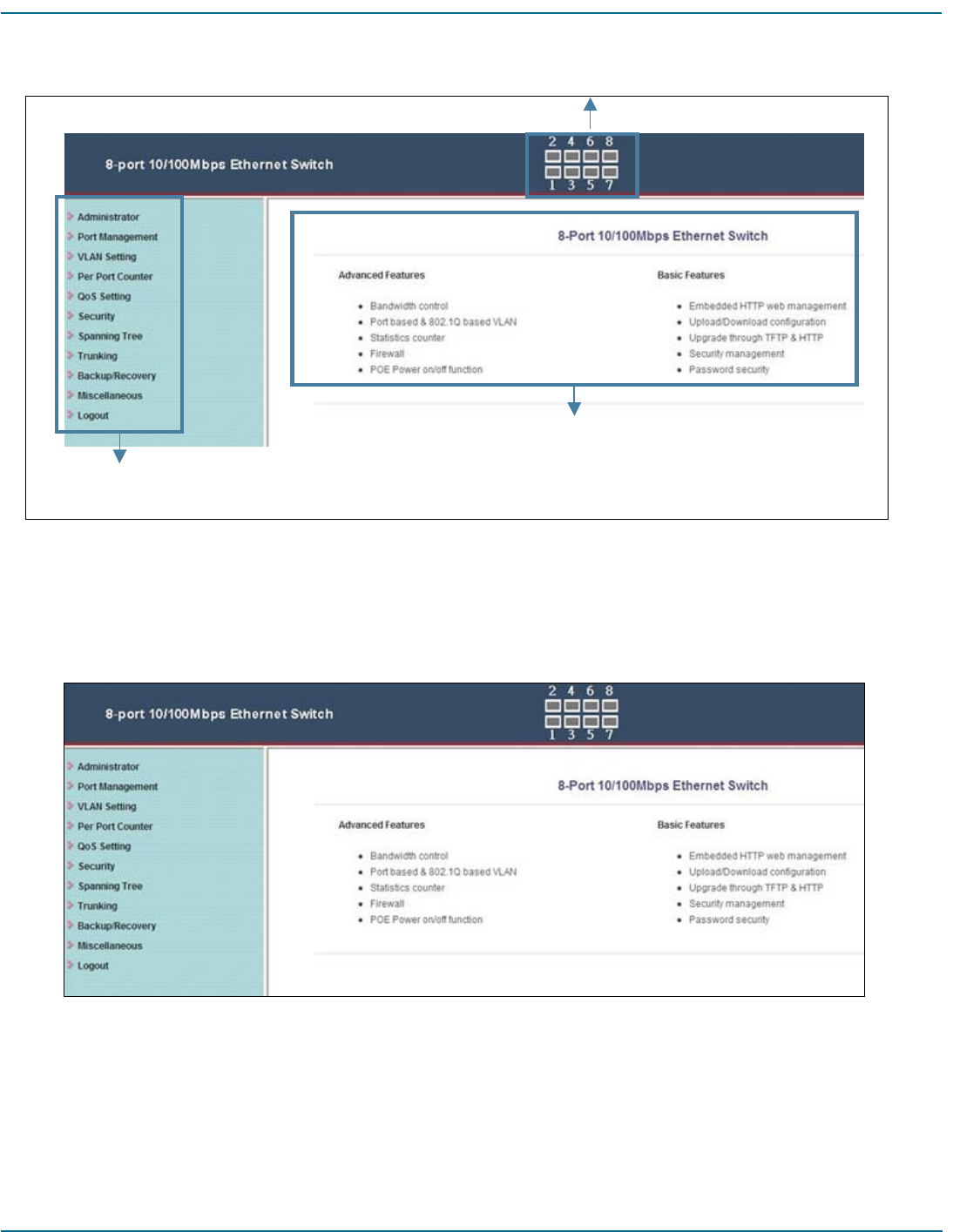

In Figure 4-2, for example, the left section shows the whole function tree with web user. Each option is described in this
chapter.
Figure 4-2. Layout of screen for web management.
4.1 Web Management Home Overview
After you login, the screen shown in Figure 4-3 appears. Select one of the configurations by clicking on the icon in the
configuration bar.
Figure 4-3. Home screen of web management interface.
4.2 Administrator
In this configuration, you can configure following functions by clicking the sub-icons.
Authentication Configuration
System IP Configuration
Configuration Content Screen
