8-/16-/24-Port 10/100 PoE PSE Web Smart Switch
724-746-5500 l www.blackbox.com
28

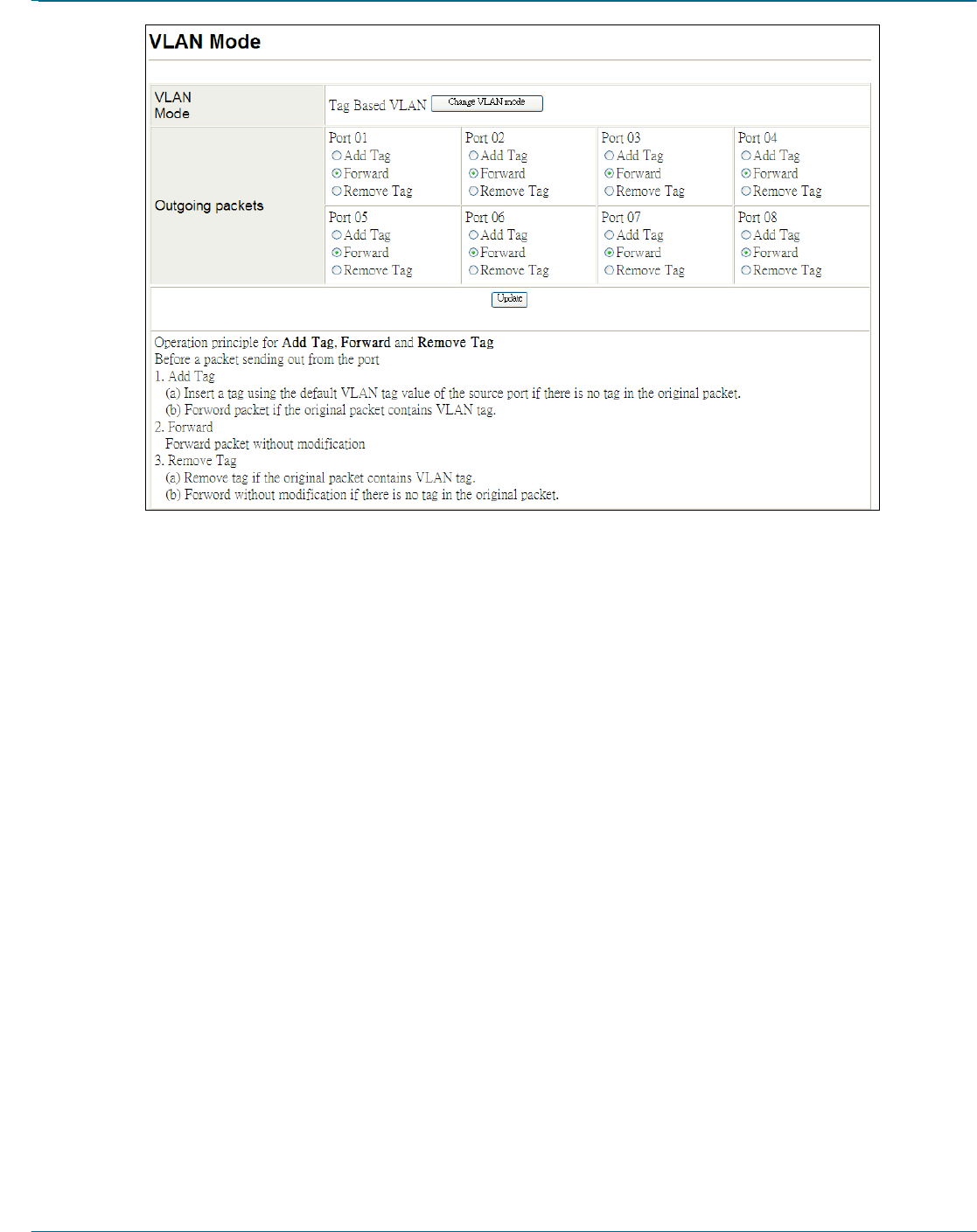

Figure 4-16. Tag-based VLAN screen.
4.4.4 Tag-based VLAN—VLAN Member
Function name: VLAN Member
Function description: When you enable tag-based VLAN, you need to configure VLAN members with each port.
Parameter description: VID: Tag-based VLAN identifies its member by VID (VLAN ID). Each tag-based VLAN you build
must be assigned a VLAN ID. A valid VLAN ID is 1–4094. You can create up to 4094 Tag VLAN groups.
VLAN Member: Select the port you want to add to the specified VLAN ID.
PVID Selection: This is for the Private VLAN configuration. If you need use PVLAN (Private VLAN) function on Switch,
you need to Create a VLAN as primary VLAN and set the VLAN ID to 2. Then evoke the Private VLAN to select
the ports you want to enable Private VLAN service. Then the specified port will tag the VID 2 to the packet.
