4.6.4 Class of Service—IP TOS/DS
Function name: IP TOS/DS (Type of Service/ Differential Service)
Function description: When you enable this function, the packets with special IP will be transmitted first. The switch
provides the IP layer CoS function by recognizing the DSCP (Differentiated Service Code Point) Octet and mapping it to
the specified priority. For IPv4 packet, DSCP is embedded in the TOS (type of Service) Octet. For a IPv6 data packet, the
Traffic Class Octet can be used to differentiate the Class of Service. When this function is enabled, the IP1718 LF will
automatically recognize the IP version and capture either the TOS field (IPv4) or Traffic Class (IPv6).
Parameter description:
IP TOS/DS Priority Setting: Set the packet with specified IP header for a different priority queue.
IP TOS/DS Port Setting: Select the ports you want to apply to IP TOS/DS priority.

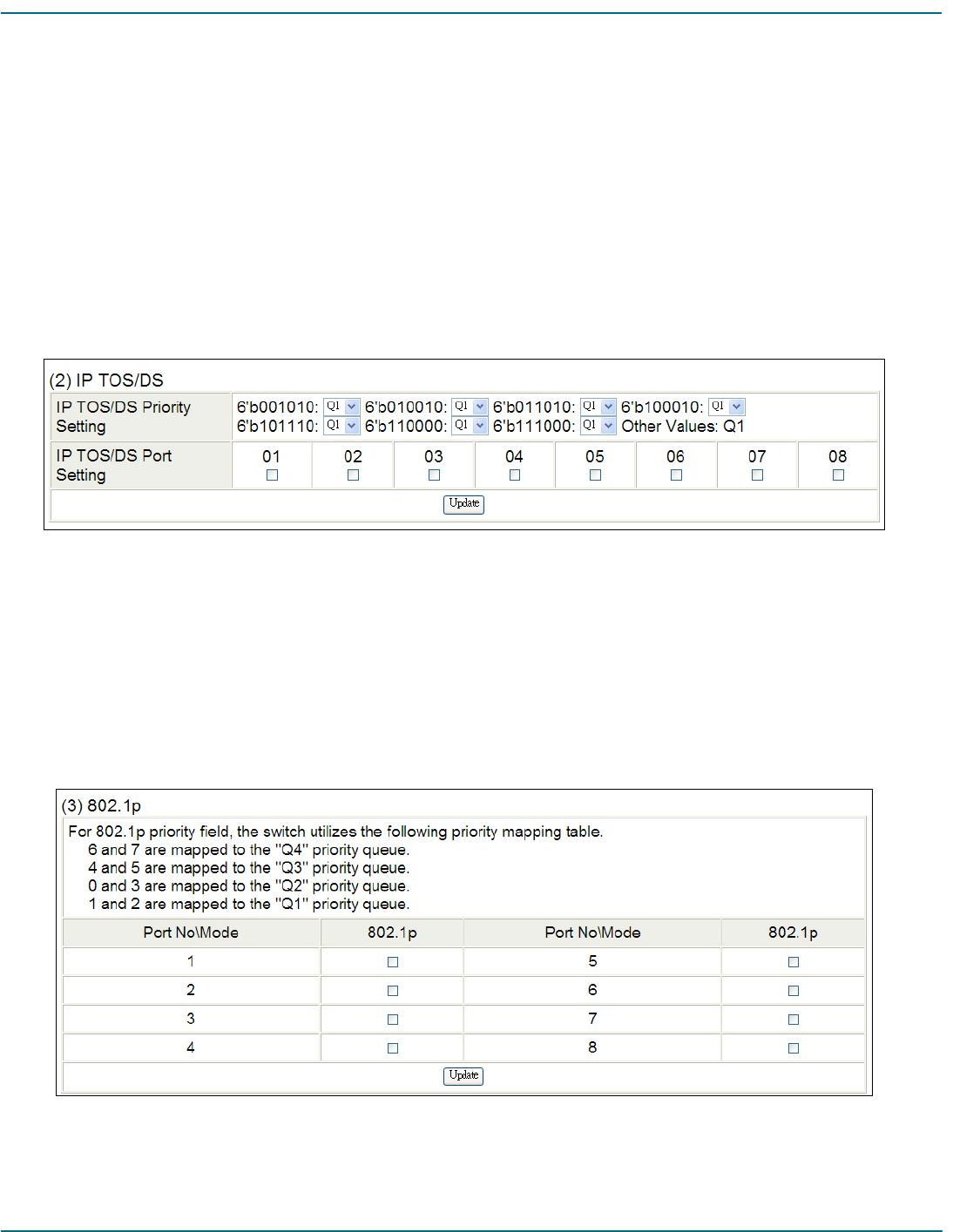

Figure 4-22. IP TOS/DS configuration.
4.6.5 Class of Service—802.1p
Function name: 802.1p
Function description: When you enable this function, the packets with special IP will be transmitted first. The switch
supports four priority queue for 802.1p. The switch uses the following priority mapping table. 6 and 7 are mapped to the
"Q4" priority queue, 4 and 5 are mapped to the "Q3" priority queue, 0 and 3 are mapped to the "Q2" priority queue, 1 and
2 are mapped to the "Q1" priority queue.
Figure 4-23. 802.1p configuration screen.
