Chapter 6: IP Address Assignment
724-746-5500 l www.blackbox.com
21

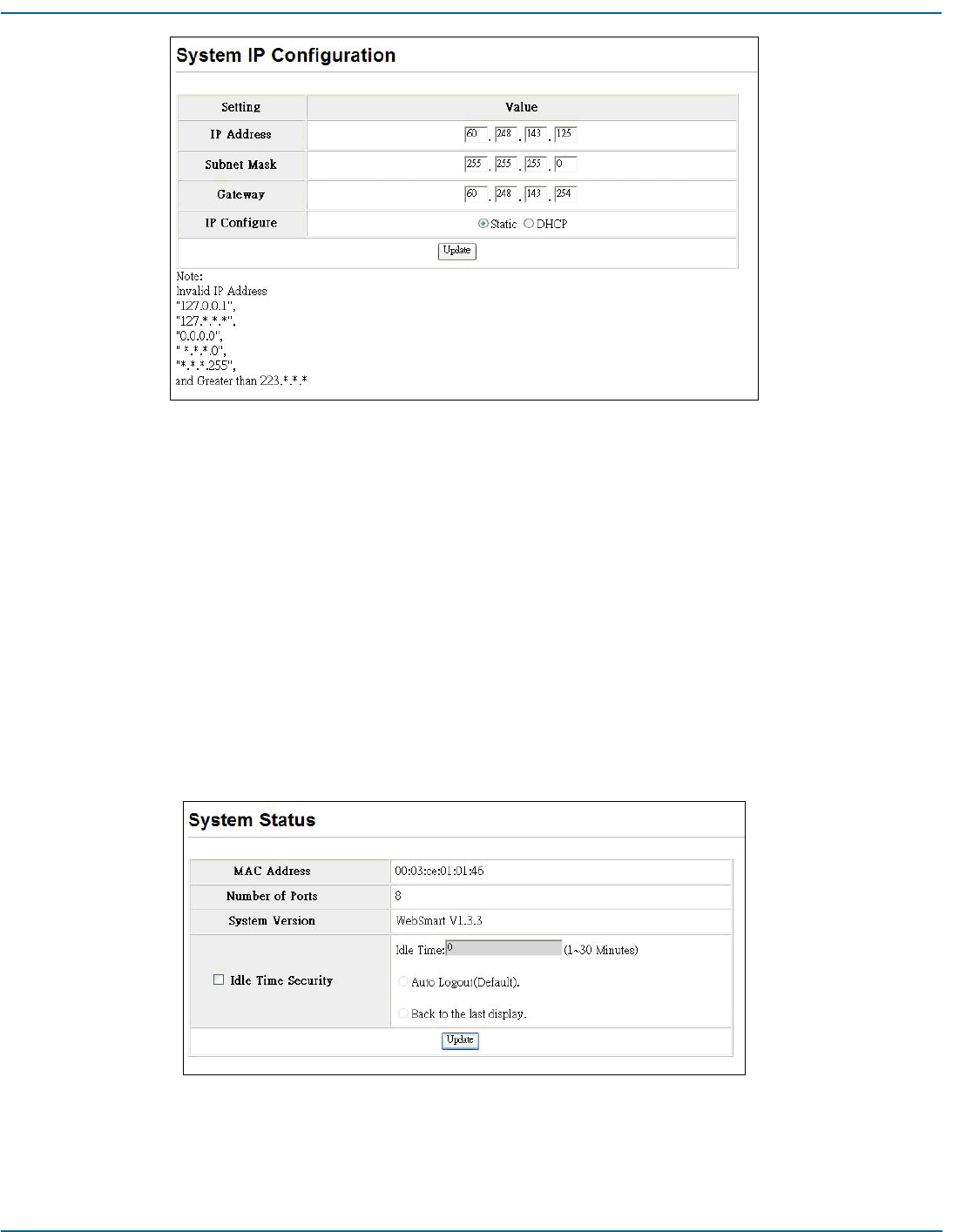

Figure 4-5. System IP Configuration screen.
4.2.3 System Status
Function name: System Status
Function description: Display the system information of the switch.
Parameter description: MAC Address: The MAC address of this switch.
Number of Ports: Show the port numbers of this switch.
System Version: The system’s firmware version number.
Idle Time Security: You can setup the idle time limitation from 1–30 minutes. 0 means no idle time is allowed. You can
also select which actions you’d like once the idle time is out. There are two options: Auto Logout means that the system
will logout once the idle time is out. You need to login to the system again if you want to get into the system. Back to last
display means the system will show the last page you’re using.
Figure 4-6. System Status screen.
