This chapter describes how to set up a Keyboard Wedge interface with the scanner. With
this interface, the scanner is connected between the keyboard and host computer, and
translates bar code data into keystrokes. The host computer accepts the keystrokes as if
they originated from the keyboard. This mode adds bar code reading functionality to a
system designed for manual keyboard input. Keyboard keystrokes are simply passed
through.
Throughout the programming bar code menus, default values are indicated with asterisks
(*).
Connecting a Keyboard Wedge Interface

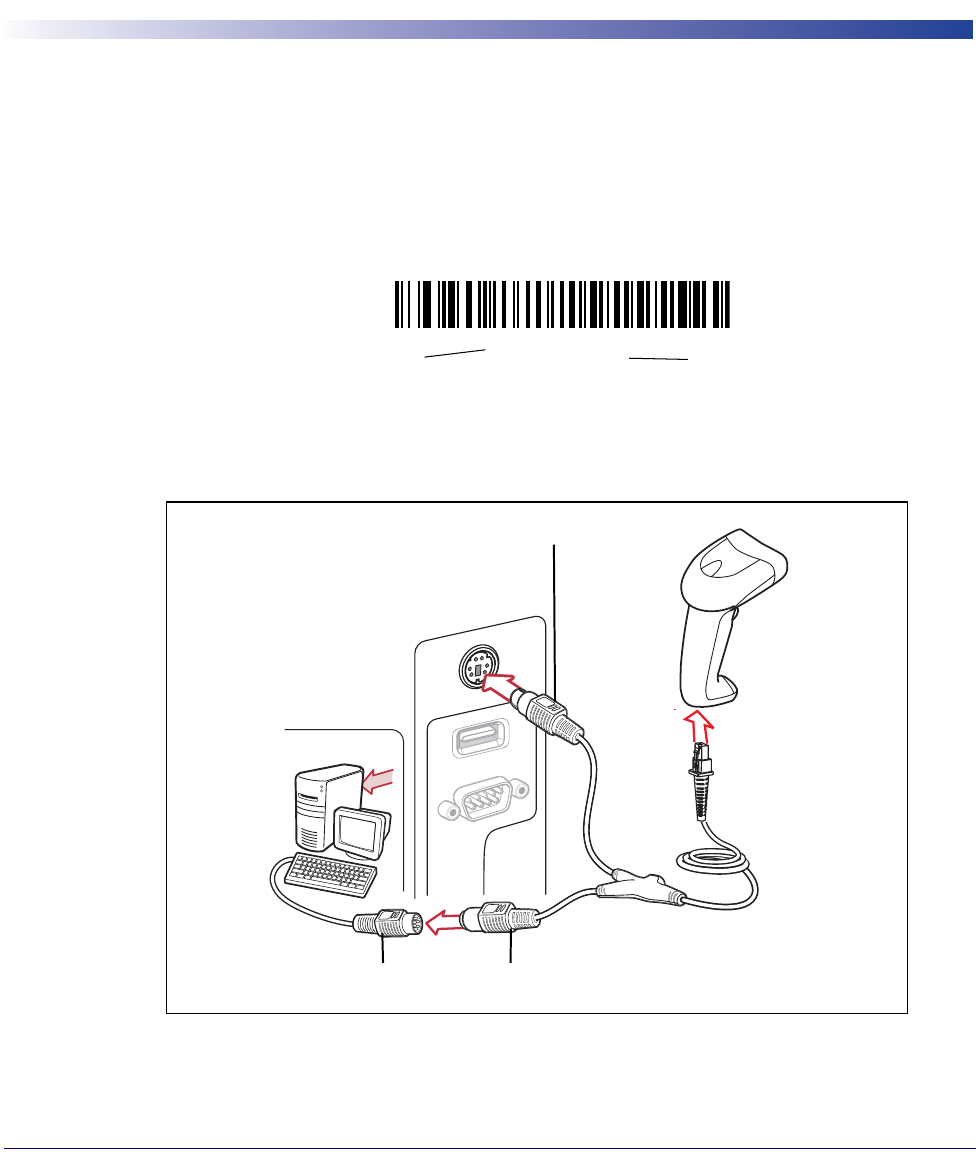

Figure 9. Keyboard Wedge Connection with Y-cable
*North American
Feature/Option
* Indicates Default
Male DIN Connector
Female DIN
Connector
Keyboard
Connector
