2-47
2 Mount the USB bulkhead connector using one of the above techniques.
Note:
If mounting to a non-grounded location, attach a grounding cable to one of the
jackscrews and terminate to ground).
3 Connect one end of the 18" USB cable to the USB connector of the
IntelliTouch serial controller, and connect the other end to the receiving
connector of the bulkhead.
4 Take up the excess cable with zip ties and secure.
5 Label the monitor to indicate that an IntelliTouch 2500U controller has been
installed inside the display.

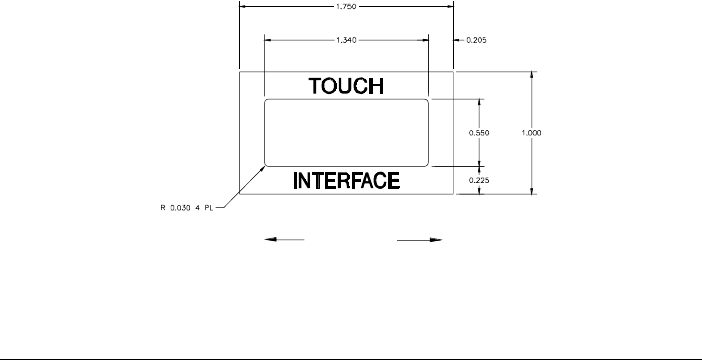

Figure 2.13
Horizontal escutcheon plate
Re-assembling the Display
Re-assemble the display by completing the disassembly steps in reverse order.
Take care to connect everything correctly and completely.
Various methods can be used to obtain power for the internal RS-232
controller and USB controller. Refer to the Power section of this document,
page 44, to determine the method which is best for your particular situation.
Brush Direction
