Extron • System 4
xi
Switcher Series • User’s Manual
Chapter 2 • Configuration and Installation
TIP
SLEEVE
RING
+
-
TIP
SLEEVE
RINGTIP
SLEEVE
2-7
• Unbalanced High Impedance (High Z) Stereo Tip, Ring, Ground (Left & Right)
• Balanced High Impedance (High Z) Stereo Tip, Ring (Left & Right)
• Balanced 600
W
input Impedance Stereo Tip, Ring (Left & Right)

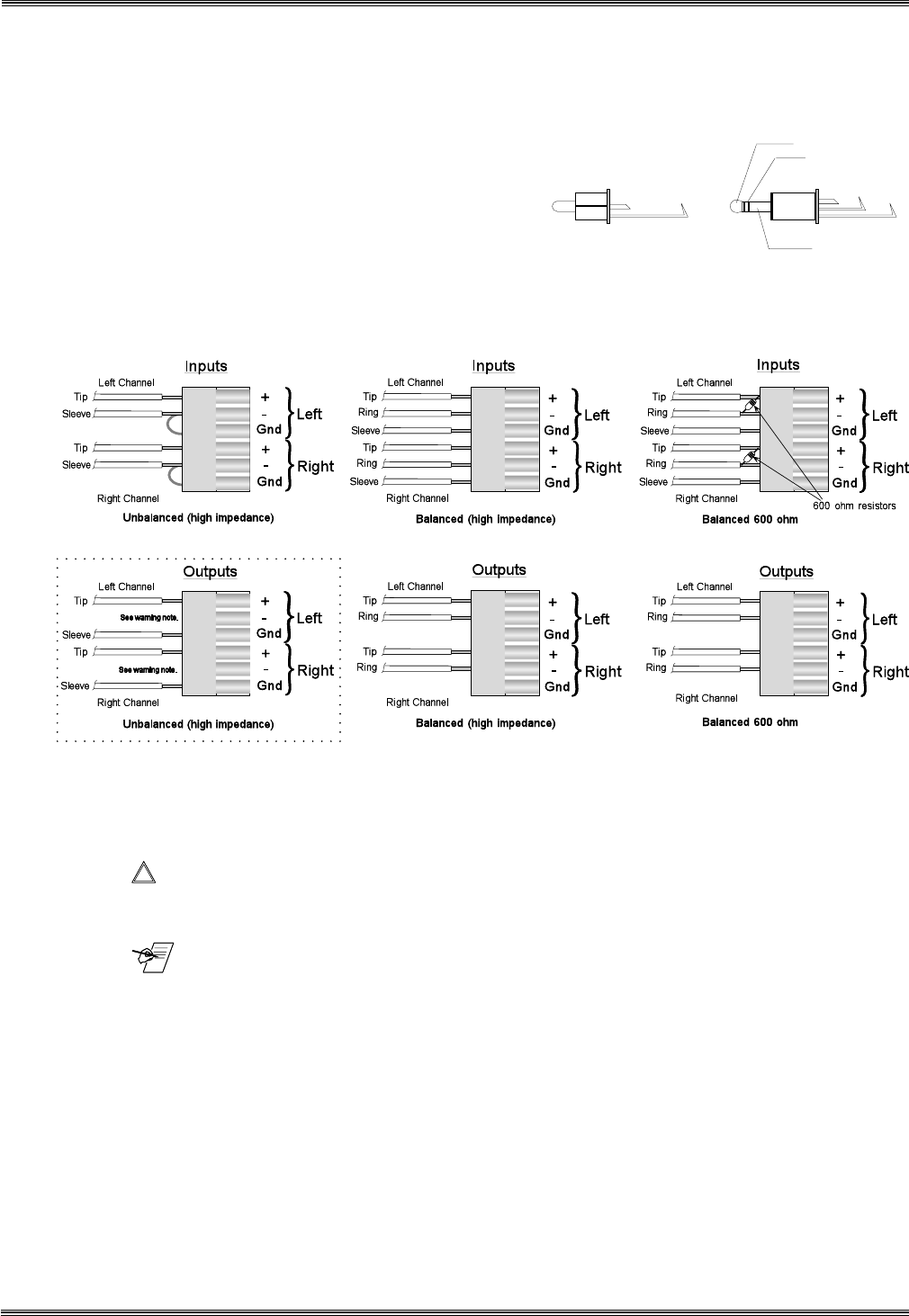

Figure 2-9. The Audio Cable Equivalent Connections
Figure 2-10. Three ways to Wire the Input and Output Audio Connectors
_________ If using unbalanced audio output, use lower-left connector as an example, and
connect the sleeve to Gnd. Connecting it to the negative (-) terminal will damage
audio output circuits.
_______ Use captive-screw audio connectors, Extron part number 10-163-01
