Extron • System 4
xi
Switcher Series • User’s Manual
Chapter 5 • Using Windows® Control Software
System 4xi Help
The fastest way to learn what each Windows® function does is through the Help
menus. At any time, help is available by double-clicking the Help icon (previous
section), pulling down the Help menu or by pressing F1. This will bring up the
Help menu (like the example shown below) to allow you to step through the
screen examples. Click on the items on each screen to display a description.
_________ As with all Windows® Help menus, clicking on the underlined words will give
more detailed help.

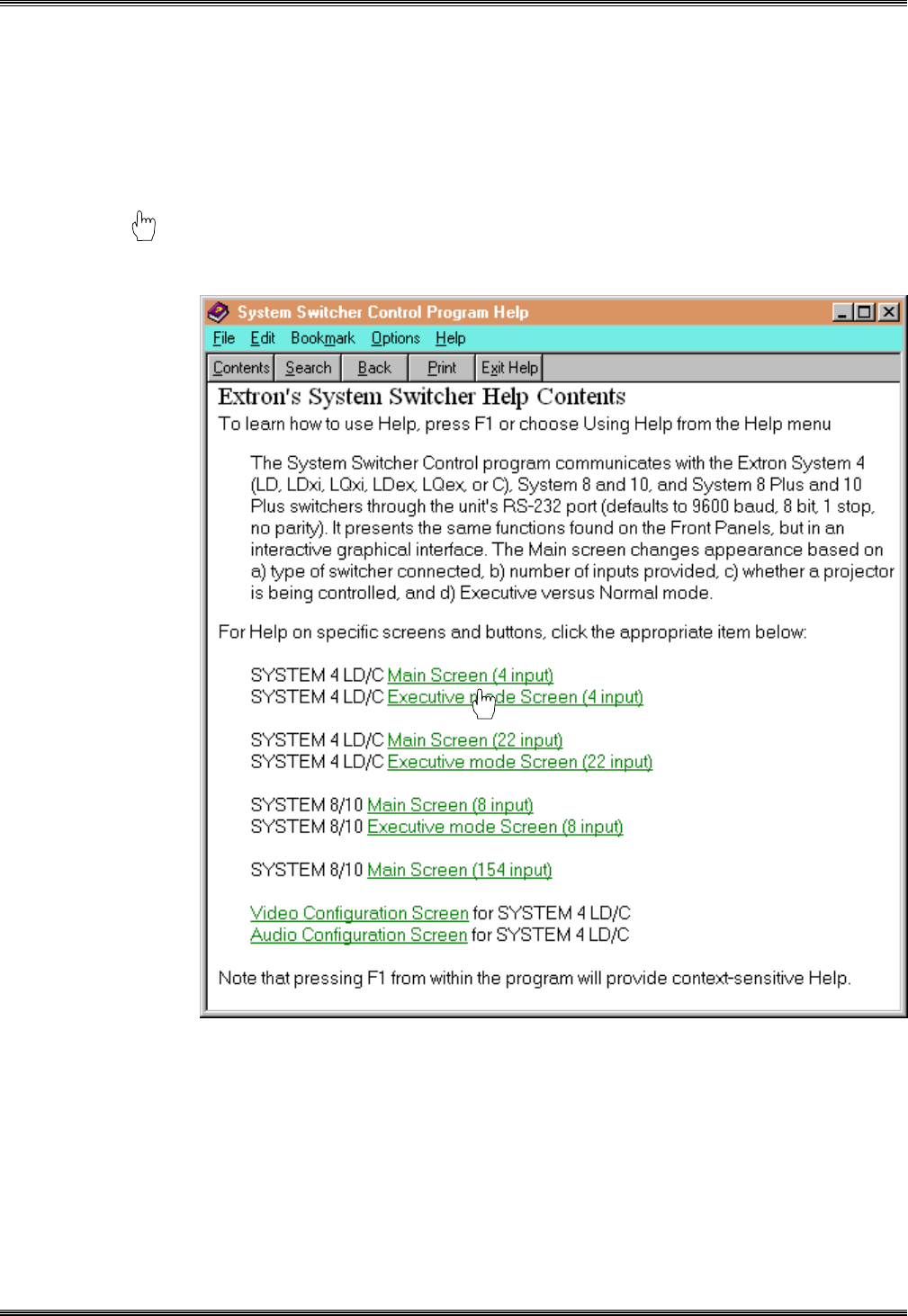

Figure 5-3. Example of the first Help menu, Help Contents
After viewing the Help menus, use the software to setup your System 4xi.
Specific examples are given below.
Each function on the front panel of your System 4xi is emulated in the software
panel in the window. Also, the software was written to operate with different
models of switchers. Therefore, any function that is not available on your model
will be inactive in the window. A function is inactive when it appears dull, or gray,
and does not respond to the mouse cursor.
.
5-2
