4.7 Timing
C156-E205-01EN 4-83
4.7.5 Ultra DMA data in transfer (host stop timing)
DMARQ
DRMACK-
STOP
HDMARDY-
DSTROBE
DD(15:0)
tRP
tSR
tRSF

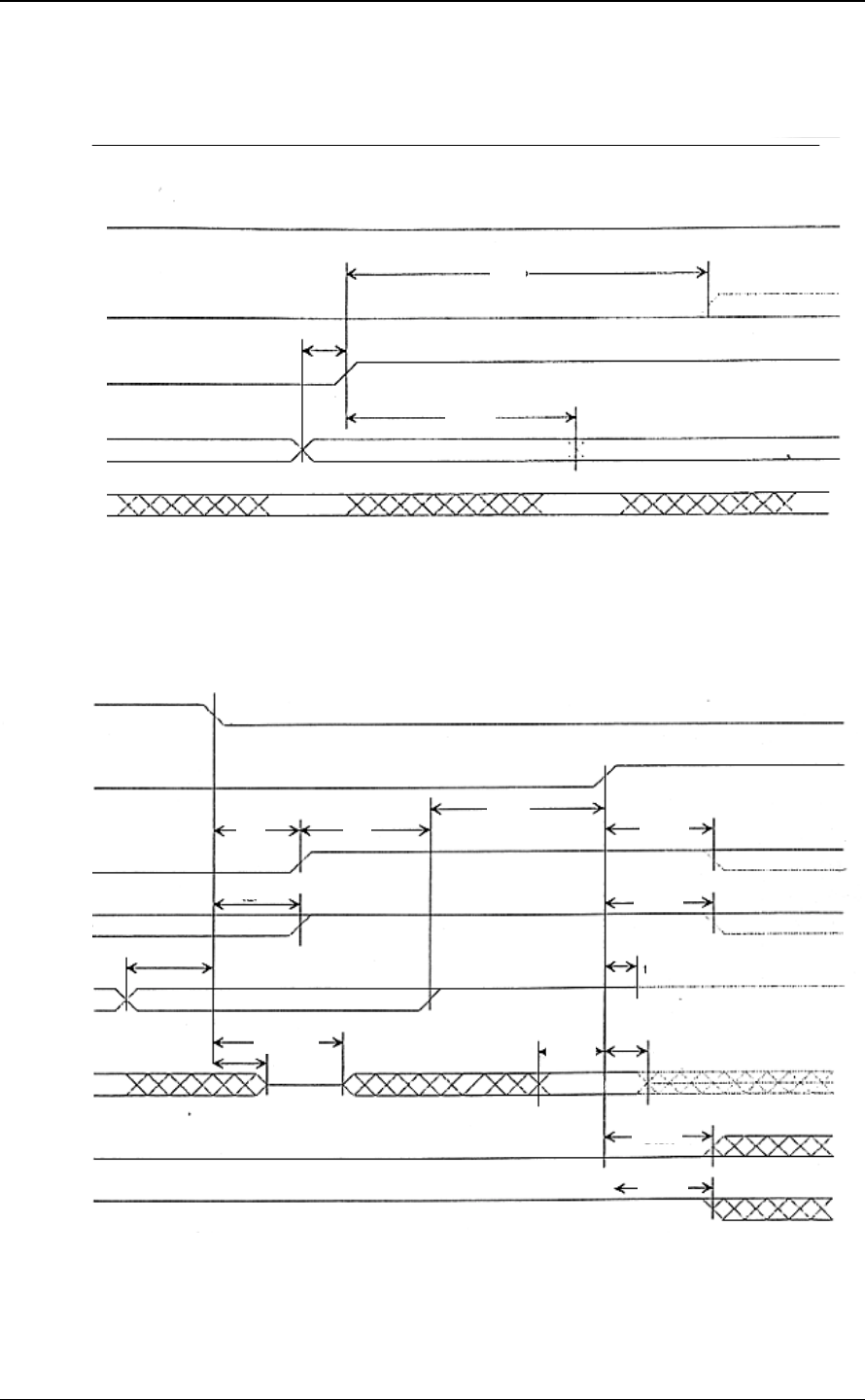

Figure 4.6 Ultra DMA data in transfer (host stop timing)
4.7.6 Ultra DMA data in transfer (device end timing)
DMARQ
DMACK-
STOP
HDMARDY
DSTROBE
DD(15:0)
DD(2:0)
CS0-, CS1-
tMLI
tLI
tLI
tLI
tSS
tACK
tACK
tIORDYZ
tACK
tACK
tDVH
tDVS
tZAH
tAZ
C
RC
Figure 4.7 Ultra DMA data in transfer (device end timing)
