5.4 Cleaning Optical Disk Cartridge
C156-E205-01EN 5-13
2)
Set the cartridge with keeping label side down and shutter open to the shutter
stopper of the setting case as shown in Figure 5.8.

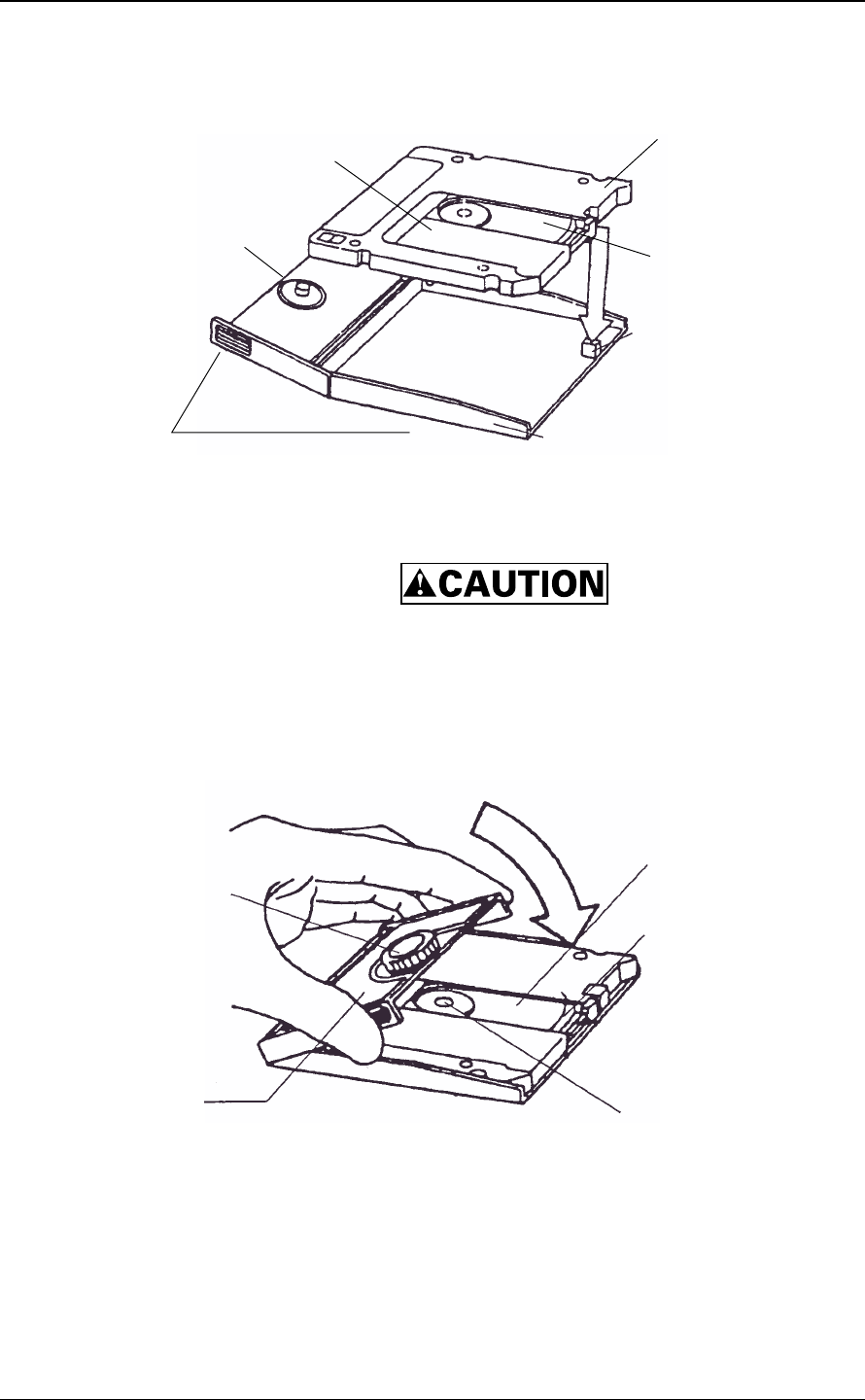

Figure 5.8 Cleaning procedure (2)
Damage for disk medium:
At setting the cartridge to the setting
case, do not apply the heavy shock and push hardly.
3) Cover the cartridge with the setting case cover, then insert the spindle pin into
the center hub of the cartridge.
Figure 5.9 Cleaning procedure (3)
4) Remove a slender piece that causes a defect from the disk surface at wiping
the disk media.
5) Moisten the cleaning cloth with a few drops of cleaning solution.
Shutter stopped
Setting case
Setting case as shown
Disk media
Spindle
Shutter
Cartridge
Cartridge opening
D
isk media
Disk hub
Setting case cover
Revolver
