Removal and Replacement of Parts (without Calibration)7-14
Replacement of Parts
Replacement of LCD Assembly
You will be removing the LCD assembly from the printer and installing a new LCD assembly.
Removing the LCD Assembly
Step 1. Remove the LED PCA (refer to the
procedure in Replacement of LED PCA).

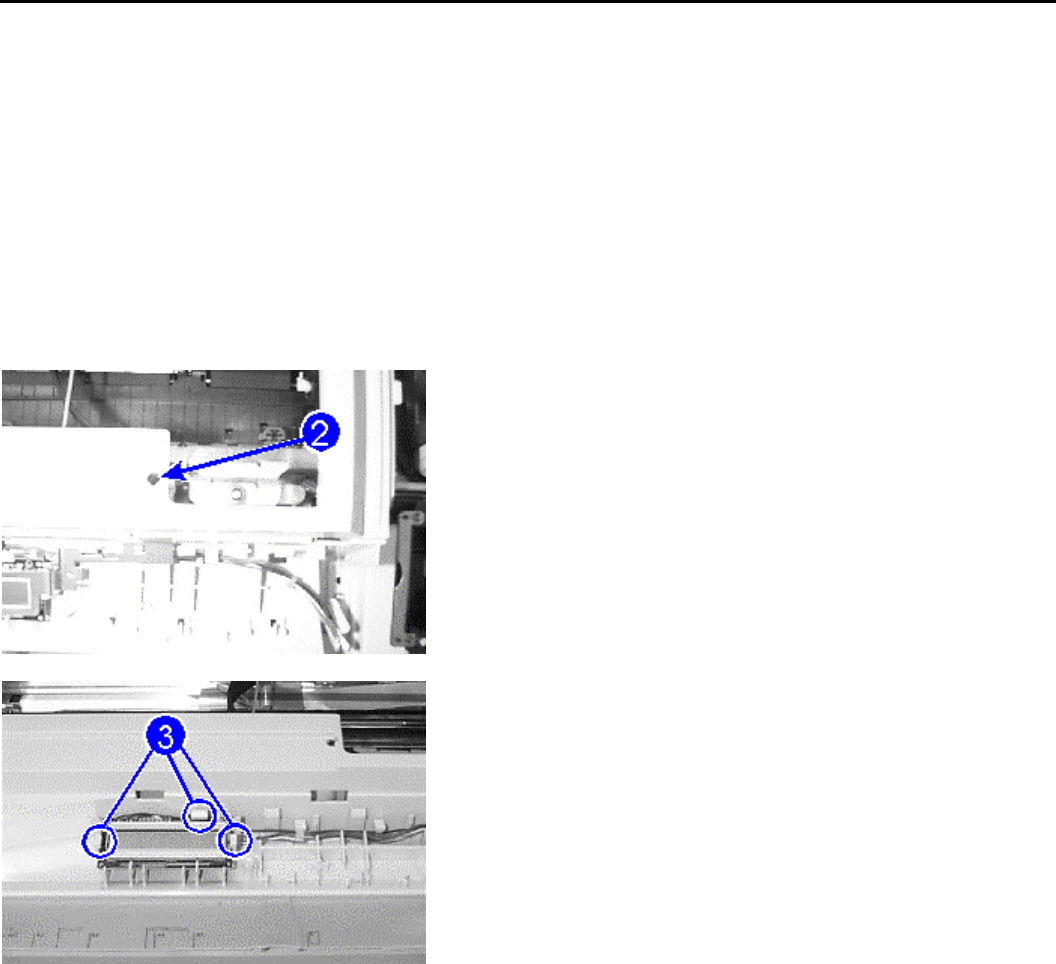

Step 2. Remove the LCD harness by removing one
screw (as indicated in callout 2) and lifting
it up from the LCD.
Step 3. Remove the LCD by unlatching its wiring
from under the plastic hooks and
unsnapping the LCD from under the
plastic holders.
