Comet installation and user manual: E-6761200XT/FC
2.6
Merlin Gerin by MGE UPS SYSTEMS

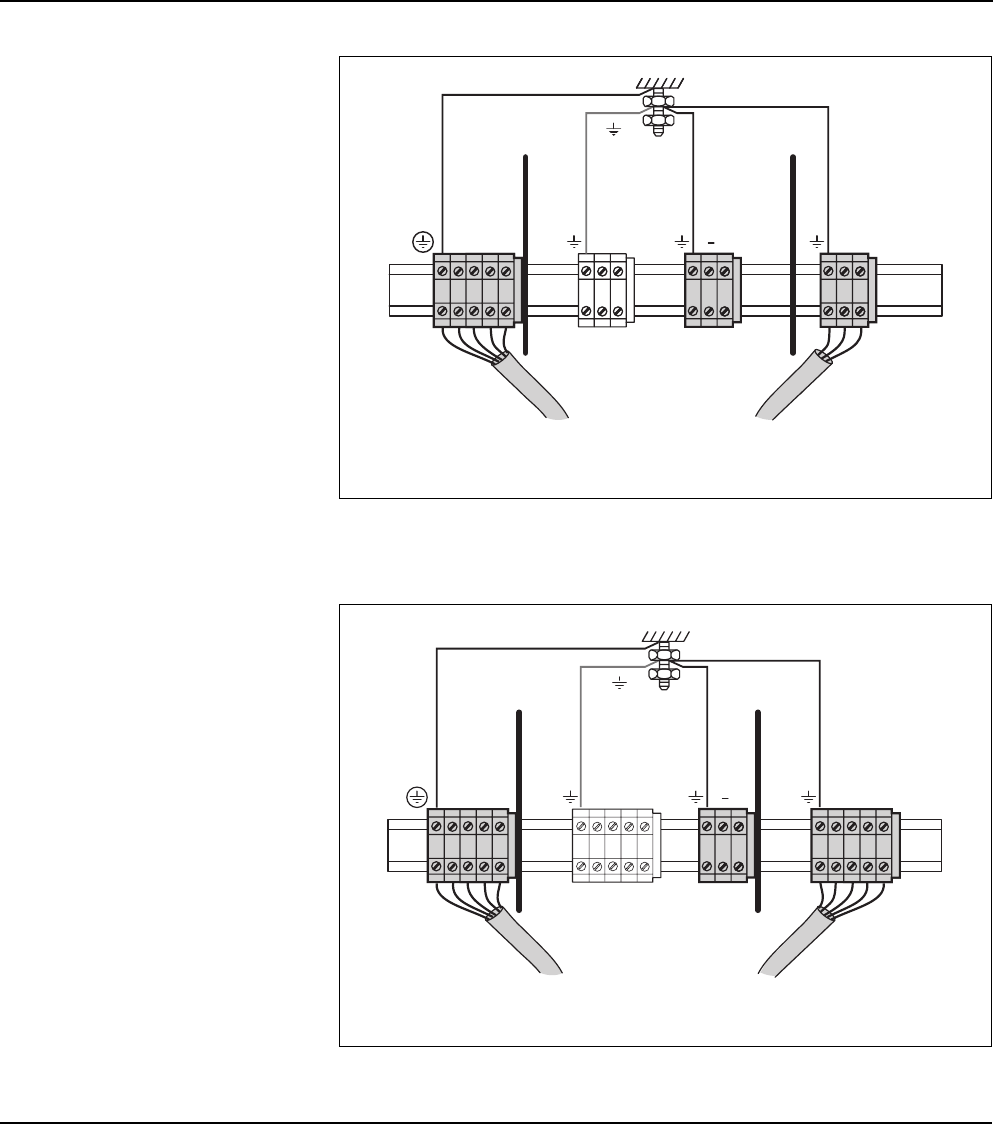

Connections for Comet series 31 7.5/10/15/20kVA
Connections for Comet series 33 10/15/20/30kVA
Fig. 13
Fig. 14
to load
(single-phase
+ earth)
from LV switchboard
(three phases,
neutral and earth)
XR3
battery
(optional)
XR2
load
XR1
Mains 1
XR1
Mains 2
(optional)
L1
N
L
+
L1
N
L
NL1L2L3
to load
(three-phases, neutral
and earth)
from LV switchboard
(three phases
neutral and earth)
XR3
battery
(optional)
XR2
load
XR1
Mains 1
XR1
Mains 2
(optional)
NL1L2L3
L
+
L
NL1L2L3 NL1L2L3
