Comet installation and user manual: E-6761200XT/FA Merlin Gerin by MGE UPS SYSTEMS
This option can be used to obtain different input and output frequencies. The
frequency converter is supplied with a separate Mains 2.
This option is delivered either with or without a battery.
The cables requiring connection are indicated as bold lines.
For information on cable cross-sections, see the Appendices (selection of cable
cross-sections).

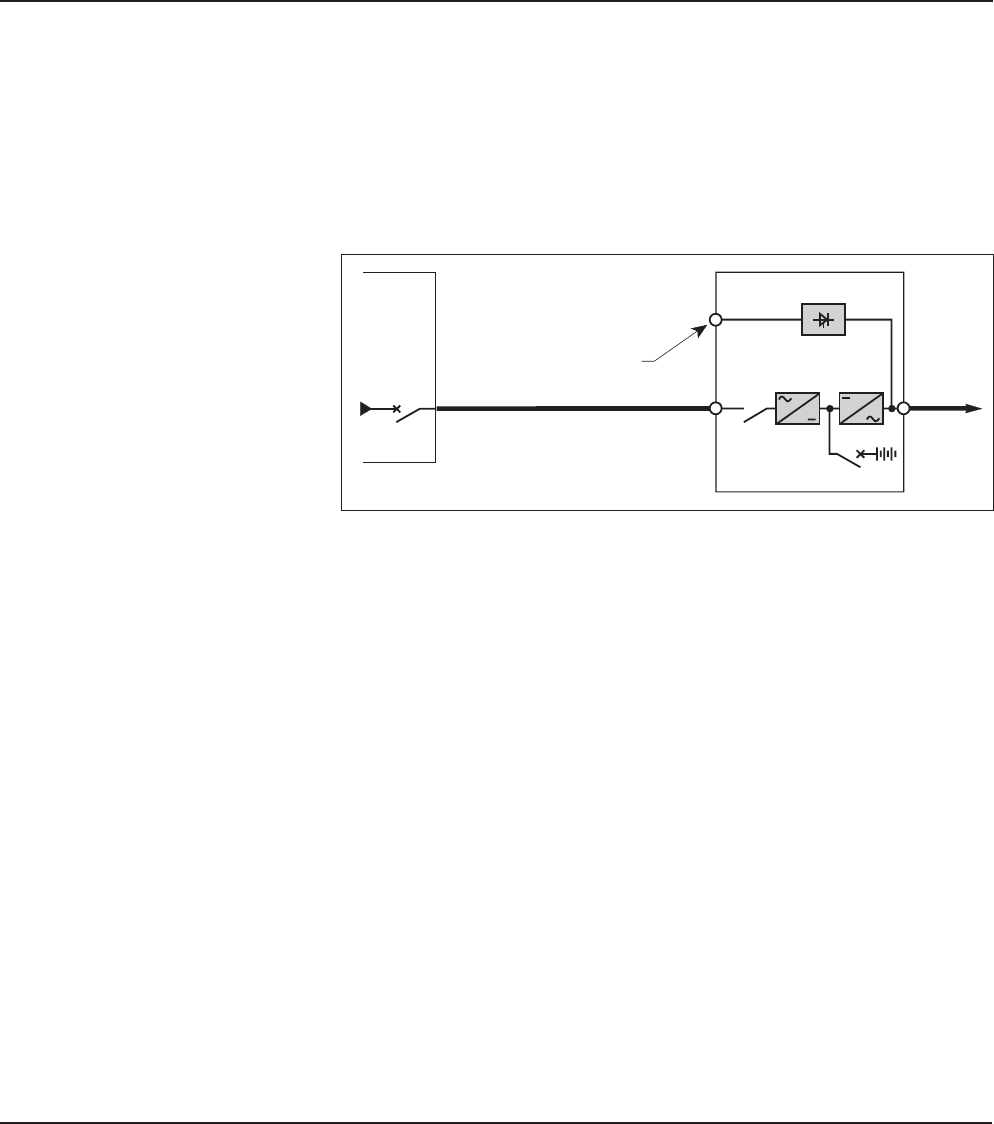

frequency converter
power connection diagram
load
Mains 1
XR2
XR1
Comet
Mains 2
LV
switchboard
CB1
XR1
connect nothing to
this terminal block
options (cont')
