Model 3201 G.SHDSL Integrated Access Device User Guide A • Specifications
Dimensions
1.58H x 4.16W x 3.75D in. (10.6H x 4.1W x 8.8D cm)
Power and Power Supply Specifications
The 3201 may come with either an AC or DC power supply.

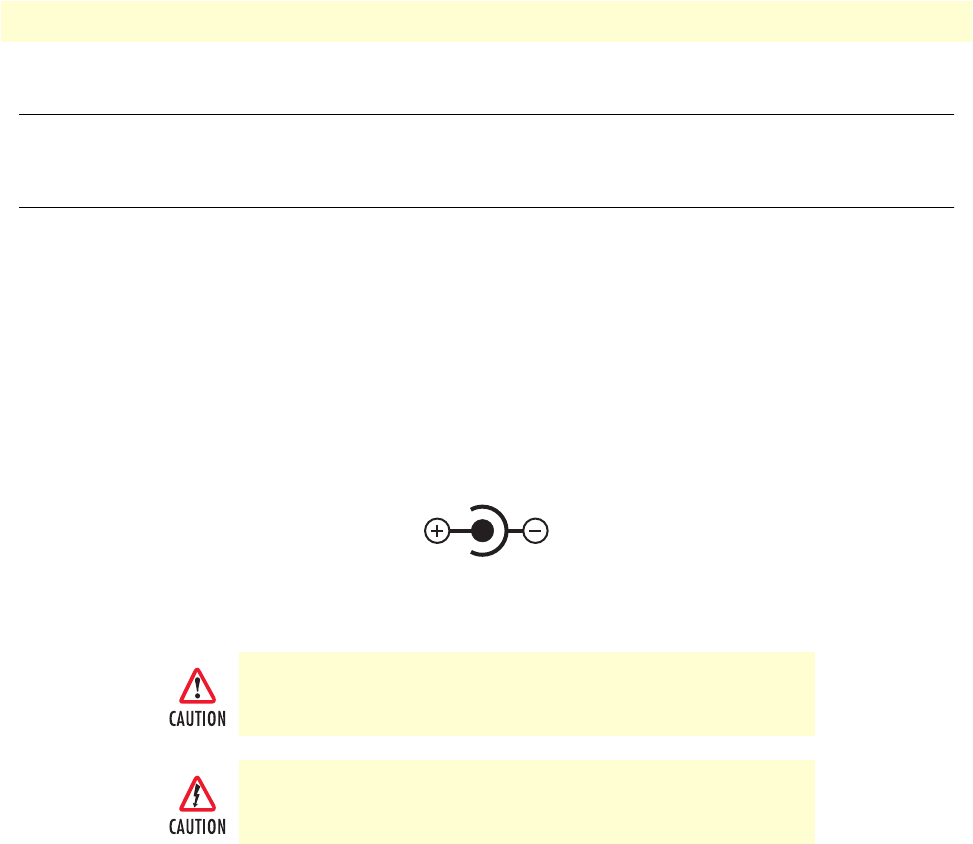

• The supply’s connection to the 3201 is a 2.5 mm barrel receptacle with the center conductor positive.
• There is one fuse in the equipment rated at 250V, 500 mA, 2 sec.
• Model 3201’s Rated voltage: 5 VDC
• Model 3201’s Rated current: 1 A DC
External AC universal power supply
• Output from power supply: 5 VDC, 2A
• Input to power supply: universal input 100 – 240 VAC 50/60 Hz 0.3A
• External 48 VDC power supply
– Input
• Rated voltage: 36–60 VDC
• Rated current: 0.25 A DC
• 3-pin locking connector, 3.5 mm pitch
• Reverse polarity protection
• Transient over-voltage protection, 100 VDC at 2 ms
– Output
• Rated voltage: 5 VDC ± 5%, 5W
• Rated current: 1 A DC
• 6-inch cable terminated with 2.5 mm barrel plug, center positive
An approved external power supply that incorporates a discon-
nect device must be used and positioned within easy reach of
the operator’s position
Connect the equipment to a 5 VDC source that is electrically iso-
lated from the ac source. The 5 VDC source is to be reliably con-
nected to earth.
5 VDC
