Two stand-alone units directly connected 31
Model 3201 G.SHDSL Integrated Access Device User Guide 4 • Basic Application Configurations

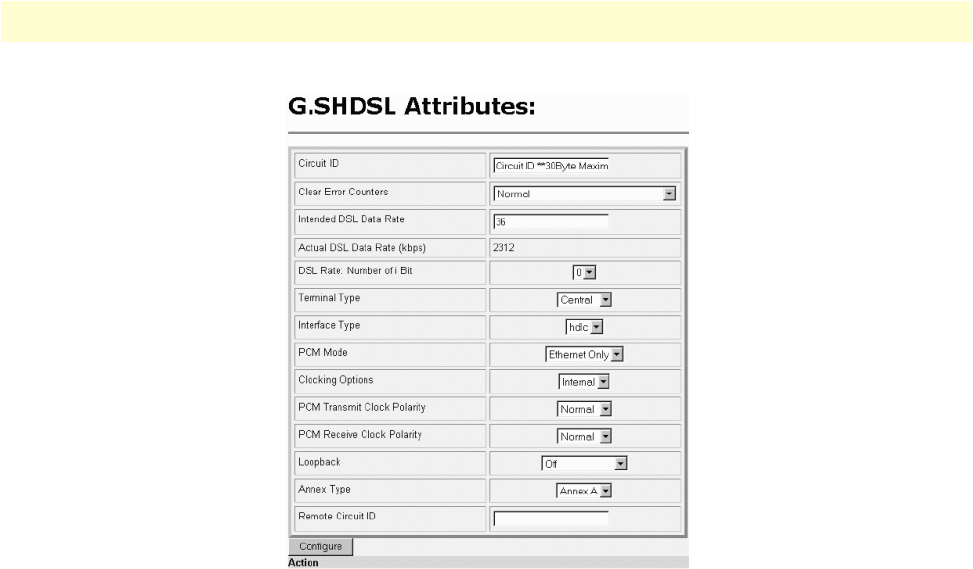

Change Terminal Type to Central and Interface Type to hdlc. Click on the Configure button.
In the Action submenu under G.SHDSL, change Action to
Deactivate, then click on Action.
Return to Action, select
Start and click on Action.
Model 3201 (Central) Configuration Steps (PPPoH Bridged)
See the Web page images for the Remote Model 3201 configuration above.
From the command line interface (CLI) via the RS-232 control port,
→
ip list interfaces
One IP interface is called ip1 with an IP address of 192.168.1.1
Change the IP address so it is in the same subnet as both PCs. For example, to 192.168.100.3
→
ip set interface ip1 ipaddress 192.168.100.3 255.255.255.0
1. Now you can bring up the web-page management system on your browser by entering the IP address of
the 3201.
2. On the Menu, go to
Configuration, then to WAN Connections. Delete the factory default WAN services already
defined.
Click on
Create a new service in the main window, select PPPoH_Bridged and click on the Configure button.
In the
Description field, enter the description you wish. In this example, it is called PPPoH Bridged.
Verify the settings to be:
– Interface = 1
– LLC header mode = dialout
