SRX-T420
Protection sheet
Lamp bulb

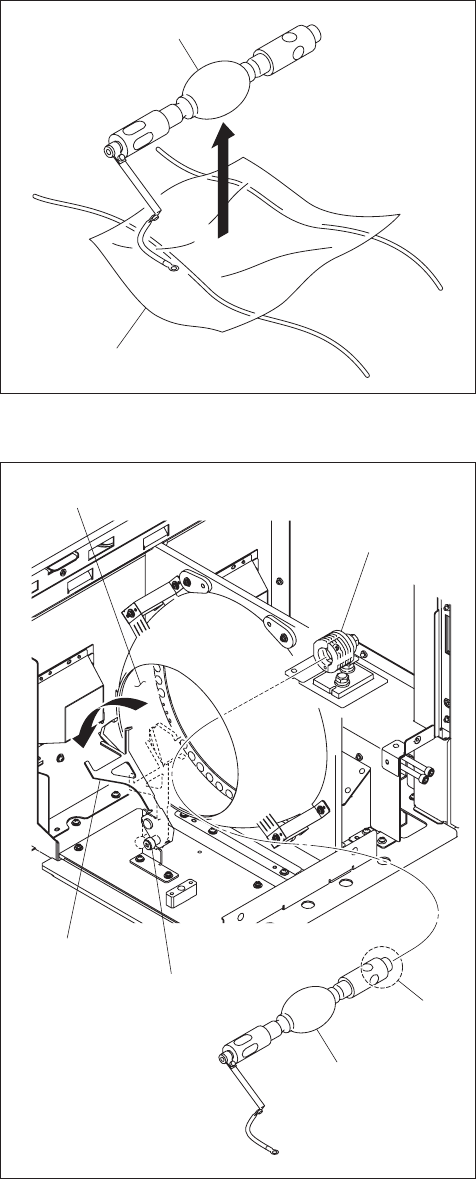

Fig. 1-6g
9. Remove the protection sheet from the lamp bulb.
10. Loosen the knob, then move the anode holder in the
direction of the arrow.
11. Insert portion A of the lamp into the cathode terminal.
n
When attaching the lamp bulb, be careful not to dam-
age the refl ector portion. Also, be careful not to dam-
age the glass of lamp bulb. Otherwise, it may break the
lamp bulb.
12. Hold the cathode side of the lamp bulb fi rmly and raise
the anode side. Then, return the anode holder to the
original position and tighten the knob.
Knob
Anode
holder
Lamp bulb
Portion A
Cathode terminal
Reflector portion
Fig. 1-6h
