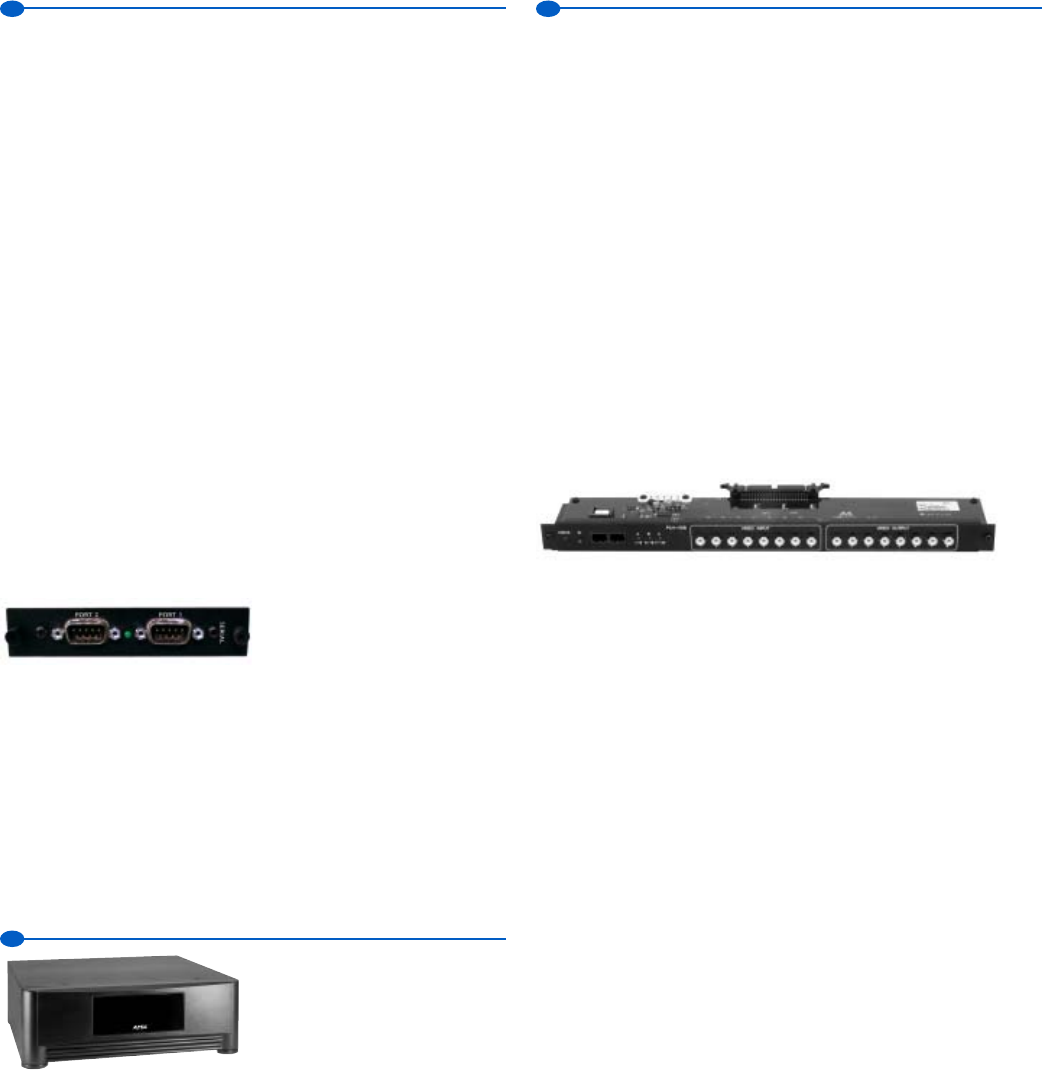

PLB-HUB2
Modular Expansion Frame
FG990-10
FEATURES
• Accepts up to three PHAST hub-style cards
• Includes 300W power supply and advanced power conditioning
HUB SLOTS: 3
DIMENSIONS (HWD): 5.56" x 17.13" x 15.25"
(141 mm x 435 mm x 387 mm)
WEIGHT: 16.2 lbs (7.3 kg)
POWER: 110/220 VAC, 50/60 Hz
Internal 12 VDC conditioned power supply, 13 A max
ACCESSORIES
PM-RAC Rack-Mount Kit, requires 3 rack spaces (5.25")
PLC-IROUT
IR Output Card
FG0734
APPLICATION
• Control of IR-format sources
PORTS 1-4
• 4 outputs, IR or wired IR up 10 MHz
WIRING
• 4 mini-phono jacks for emitter or wired IR cable
POWER
• 75 mA
PLC-RL8
8-Relay Card
FG0722
APPLICATION
• Control closure-activated sources
RELAYS 1-8
• 8 dry-contact relays, 1 A @ 30 VDC
JUMPERS
• Set relays to NC/NO operation
WIRING
• 6-pin screw terminal
POWER
• 360 mA
PLC-SER
Dual Port RS-232 / Single Port
RS-485 Card
FG0739
APPLICATION
• Bi-directional serial control
PORT 1
• RS-232/422/485, 300-56,000 baud, CTS/RTS
PORT 2
• RS-232, 300-56,000 baud, CTS/RTS
WIRING
• 2 9-pin male D-Sub connectors
POWER
• 80 mA
LANDMARK EXPANSION FRAME
LANDMARK HUB AND AV MATRIX CARDS
PLH-MIC
Microphone Hub Card, 8 PHASTLink and MIC Ports
FG936
FEATURES
• Supports up to eight PHASTLink wiring runs, each running up to 1000 feet, with
up to 10 devices per port
• Receives balanced-line audio from PLK-DMS and PLK-IMS LCD keypads, using
one keypad per PHASTLink port
• Transmits unbalanced line-level audio to PHAST audio switcher
• Links to PHAST Cardframe and other hub cards via Hub In and Hub Out ports
HUB IN AND OUT
• RJ-45 Hub In port
• One RJ-45 Hub Out port
PHASTLINK 1-8
• Eight RJ-45 PHASTLink ports
MIC 1-8
• RCA female line-level audio output
PLH-VS8
8X8 Composite Video Switch, 8 VSS inputs
FG901
FEATURES
• Routes eight video inputs to eight video outputs
• Distributes any input to any combination of outputs while maintaining signal level
• Cascades with other PLH-VS8 cards in the same enclosure to provide 16x16 or
24x24 video matrix switching
• Senses presence of video at each input to act as a trigger for system events
• Links to PHAST system over PHASTLink data bus
VIDEO IN
• Eight RCA female video inputs
VIDEO OUT
• Eight RCA female video outputs
PHASTLINK
• Two RJ-45 PHASTLink ports
PLH-RPT
Hub Card, 15 PHASTLink Ports
FG0937
FEATURES
• Supports up to 15 PHASTLink wiring runs, each running up to 1,000 feet of CAT-
5 cable, driving up to 10 devices
• Links to PHAST CardFrame and other hub cards via Hub In and Hub Out ports
HUB IN AND OUT
• One RJ-45 Hub In port
• One RJ-45 Hub Out port
PHASTLINK 1-15
• 15 RJ-45 PHASTLink ports
LANDMARK CONTROL CARDS
