Create a Touch Panel user interface that combines video and RGB media with
Touch Panel graphics. Locate the TPI/4 next to the media, which is typically in
the equipment rack – not in the conference room. Accept media from plug-in
cards, freely mixing video and RGB inputs as needed. Send the combined
graphics to a Touch Monitor on a table, lectern or wall. Pass mouse touch
control to the computer that’s displayed on the screen. Now you have one
unified navigator for control, video, computers and the Internet. It’s an idea that
revolutionized the industry, forever changing the way we view our connected
world.
AMX G4 GRAPHICS
• 32-bit Touch Panel graphics with 8-bit alpha-channel transparency
• 16 million color palette
• Animated buttons/icons
• Transparent images and buttons
KEY TPI/4 FEATURES
• 24-bit video/graphics
• RGB, Video, S-Video
• Resizeable windows
• Real-time video on all windows
• Inputs up to 1600x1200 sized images
• Outputs up to 1280x1024 displays
• Routes USB/PS2 mouse and keyboard data via USB to computers from
each RGB input
• Plays WAV and MP3 audio files
• Operates on ICSNet and Ethernet networks
• Four scalable video windows are driven by any combination of four
TP4-RGB and TP4-VID cards
• Adapts to specific display requirements using software programmable
refresh rates
POWER:
• NXP-TPI/4 unit: 750 mA @ 12 VDC
• TP4-VID input card: 400 mA @ 12 VDC
• TP4-RGB input card: 400 mA @ 12 VDC
MEMORY:
• 64MB SDRAM (upgradeable to 256MB)
• 64MB Compact Flash (upgradeable to 1GB) factory programmed
with panel firmware
DIMENSIONS:
• NXP-TPI/4: 2.12" x 16.95" x 10.24"
(5.38 cm x 43.05 cm x 26.01 cm)
• TP4-VID: 1.05" x 2.80" x 8.60" (with connector - 9.34 cm)
(2.67 cm x 7.11 cm x 21.84 cm (with connector - 23.72 cm)
• TP4-RGB: 1.05" x 2.80" x 8.60"
(2.67 cm x 7.11 cm x 21.84 cm)
WEIGHT:
• NXP-TPI/4 base unit: 4.80 lbs (2.18 kg)
• NXP-TPI/4 with two cards: 6.05 lbs (2.74 kg)
ENCLOSURE:
• Metal with black matte finish
TOUCH PANEL INTERFACE 4
A key to leading AMX technology has been the amazing G4 (4th Generation Graphics) engine introduced on the Touch Panel
Interface 4. Unmatched G4 features are the gold standard for high-end user interface designs and capabilities.
TOUCH DRIVERS:
• ELO
®
, MicroTouch
®
, DynaPro
®
, SmartTech
®
,EZScreen
®
, Wacom
®
, IST
®
FRONT PANEL COMPONENTS:
• RS-232 (DB-9) 9-pin serial port. Used for PC to TPI/4 programming
• Four pushbuttons to change Resolution, Touch, Calibration and Setup settings
• Six LEDs display the activity of inputs 1-4, Power and ICSP
REAR PANEL COMPONENTS:
• RS-232 (DB-9) 9-pin serial port. Used to connect a pointer device such
as a mouse or touch screen
• USB port can be used to connect a pointer device
• 2 PS/2 ports for keyboard and mouse control
• 2 USB host ports for keyboard and mouse control
• HD-15 VGA output connector with a maximum resolution of 1280x1024 @ 60 Hz
• 2 RJ-45 ICSNet ports
• 1 RJ-45 10/100baseT Ethernet port
INPUT CARD SLOTS:
• Any combination of 4 TPI/4 input cards
• TP4-RGB Card – HD15 D-Sub and USB port for G4 Computer Control
• TP4-VID Video Card – Switchable Composite and S-Video input
AUDIO:
• Stereo output through a 3.5mm mini-jack
TP4-VID
TPI/4 Video Input Card
FG2275-10
FEATURES:
• BNC composite and S-Video inputs
• NTSC/PAL/SECAM
• Software switchable between Composite and S-Video
• Status LEDs indicate Composite/S-Video selection
• Use the TP4-VID input module in any input slot to connect video sources,
such as VCRs and DVDs
• Accepts Composite and S-Video input signals for scalable video windows
• Supports NTSC/PAL/SECAM video input signals
• Inputs selectable under program control
CONNECTORS
• BNC Composite Video Input
• S-Video Video Input
• Composite LED indicates that its respective connector is currently selected
for video input
• S-Video LED indicates that its respective connector is currently selected
for video input
TP4-RGB
TPI/4 RGB Input Card
FG2275-20
FEATURES:
• HD15 RGB connector for RGB graphics
• 640x480 to 1600x1200 (scaled to 1280x1024)
• USB Mouse/Keyboard Output
• Use the TP4-RGB input module in any input slot to connect RGB-type sources
such as VGA, SVGA, etc.
• Accepts RGBHV, RGBS (H/V), and RGsB
• Accepts computer-level graphics for resizeable video windows
• USB host port used for pass-through computer control
CONNECTORS
• HD-15 D-Sub Graphics Input
• USB Mouse/Keyboard Output Port

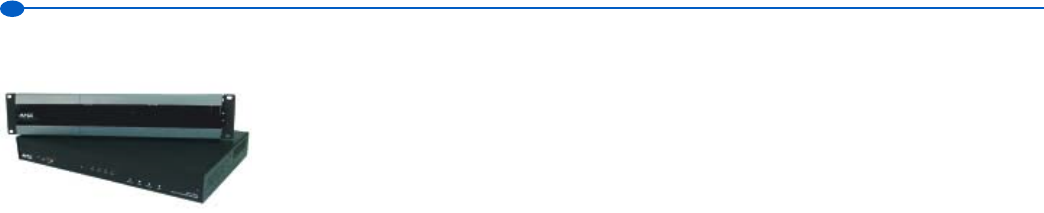

NXP-TPI/4
NetLinx Touch Panel Interface 4
FG2275
CONFIDENTIAL INFORMATION © 2003 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation.
AMX reserves the right to alter specifications without notice at any time. AMX does not assume responsibility for any errors or omissions.
For more information about AMX products and services visit www.amx.com
11-03
