INPUT SENSORS
PCS
Power Current Sensor
(for US 110 VAC 3-pole receptacles)
FG426

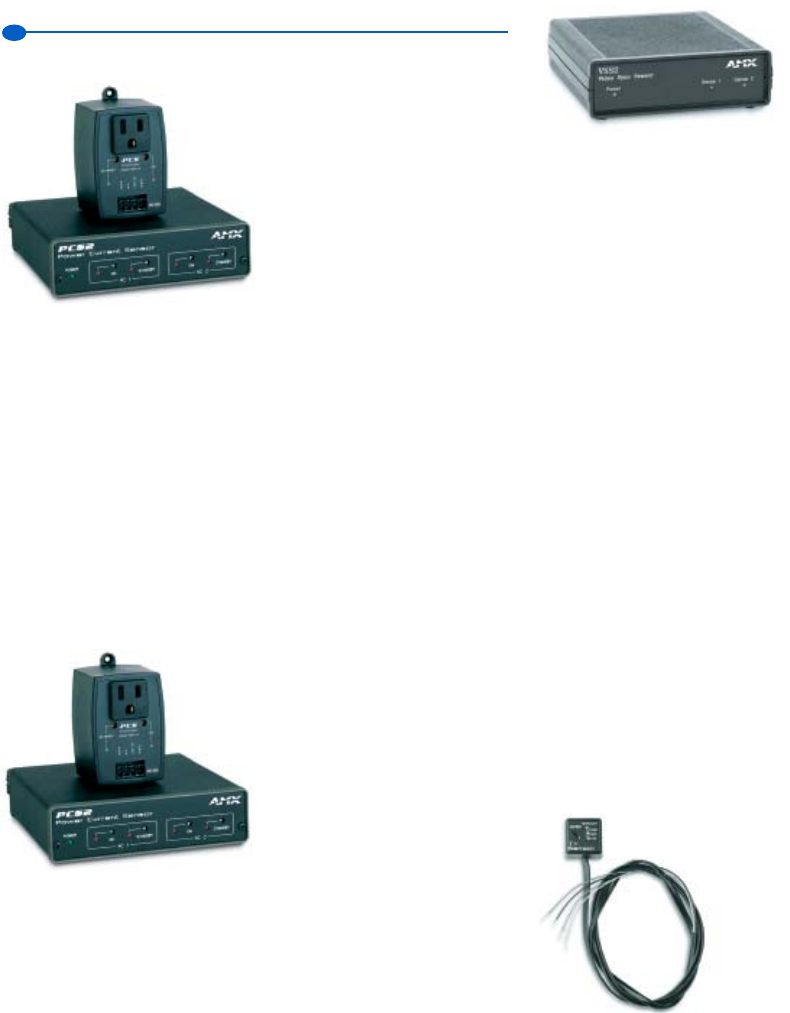

The PCS Power Current Sensor can
sense high, low or no power level
states for one device. It requires
external DC power.
CONTROL PORTS
• Two open collector transistor outputs (On and Standby)
INCLUDES
• LED indicators for Standby and On status
• Sensing for 30 mA-15 A power current levels
• 3-prong, grounded 120 VAC receptacle
ENCLOSURE: Plastic with black matte finish
DIMENSIONS (HWD): 3.1" x 2.2" x 2.5" (80 mm x 57 mm x 64 mm)
WEIGHT: 4 oz (114 g)
OPTIONS
• 12 VDC power supply
PCS2
Dual Power Current Sensor
(for US 110 VAC 3-pole receptacles)
FG427
The PCS2 Dual Power Current Sensor
can sense high, low or no power level
states for two devices, and includes a
built-in power supply.
CONTROL PORTS
• Four relay outputs (On and Standby for each source),1 A @ 28 VDC
INCLUDES
• On and Standby status LEDs for each source
• Power LED
• Sensing for 20 mA, 10 A power current levels
• Two US-style 3-prong 120 VAC receptacles
POWER
• 1200 W (10A) input power, fuse protected
• US-style 3-prong 120 VAC power cord
ENCLOSURE: Metal with black matte finish
DIMENSIONS (HWD): 1.5" x 5.5" x 5.5" (38 mm x 140 mm x 140 mm)
WEIGHT: 28.8 oz (806 g)
OPTIONS
• AC-RK Accessory Rack Kit
VSS2
Video Sync Sensor
FG5916-10
The VSS2 includes two independent signal detection channels. Each channel
triggers a logic-level output when a signal is present. Dual video jacks for each
channel allow loop-through operation. Great for use as a power sensor for
VCRs and other video sources, or to provide a warning on loss of audio, video,
or RGB signal.
FEATURES
• Detects presence of signal from 1 kHz to greater than 100 kHz
CONTROL PORTS
• Two solid-state outputs for channels A and B
INCLUDES
• Four RCA jacks
• Two for each channel for loop-through operation
ENCLOSURE: Molded black matte plastic
DIMENSIONS (HWD): 1.5" x 5.0" x 5.3" (38 mm x 127 mm x 133 mm)
WEIGHT: 10.9 oz (309 g)
RTS-1
Room Temperature Sensor (requires AXC-TEMP card)
FG748
The surface-mounted RTS-1 sends precise temperature measurement, from 0°-
250° F (-18°-120° C), to the AXC-TEMP Temperature Control Card.
CONTROL PORTS
• Level output
• Power input
ENCLOSURE: Off-white metal for wall mounting
DIMENSIONS (HWD): 4.5" x 2.8" x 0.9" (114 mm x 70 mm x 23 mm)
WEIGHT: 3.2 oz (91 g)
TVS
TV Sensor
FG691
The TVS TV Sensor is an intelligent, digital scan frequency sensor that can
send a power on/power off closure signal to an AMX Input/Output control port.
When used with Axcess and NetLinx Integrated Controller I/O ports, the TV
Sensor can be an integrated solution for automatic, sensed power control of
video/graphic displays.
CONTROL PORTS
• One solid-state closure output (Sensed power on/off)
INCLUDES
• Power on/off status LED
• Internal frequency-sensor logic, (15-75 kHz)
• Five-wire cable for closure output, 12 VDC input
ENCLOSURE: Black plastic with matte finish
DIMENSIONS (HWD): 1.1" x 1.1" x 0.8" (27 mm x 27 mm x 20 mm)
WEIGHT: 1.1 oz (3 g)
