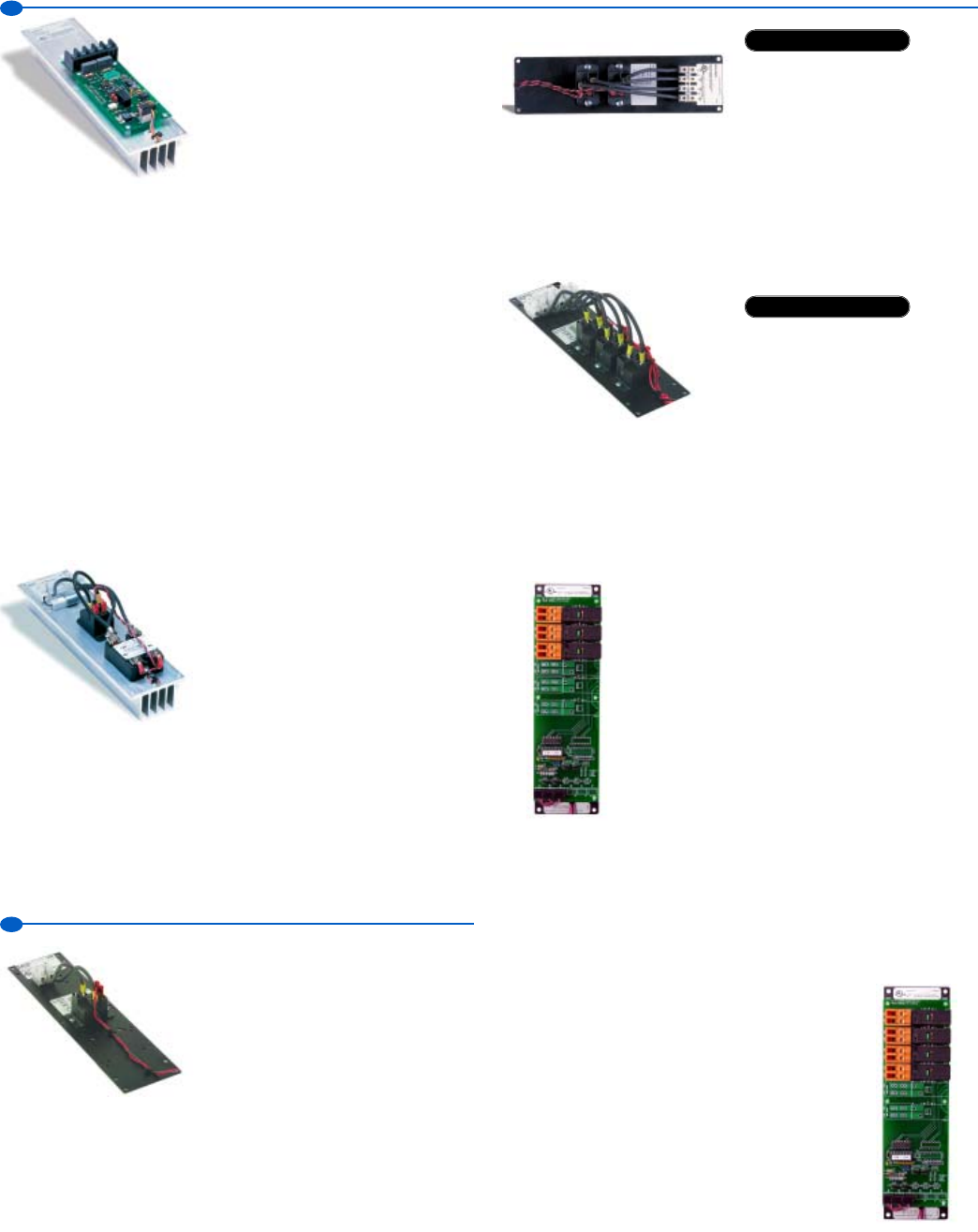

RDM-HDC
Heavy-Duty DC Module, 2,400 W, 0-12 VDC
FG606-63
APPLICATION
• Dims DC-controlled electronic fluorescent ballasts
• Ramps 0–12 VDC signal for level control
• 20A Positive air gap relay for power
• Current sourcing or current sinking
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-FDB
FDB Module, 1,920 W
FG606-65
RDM-2FDB
Dual FDB Module, 1,920 W (x2)
FG606-66
RDM-3FDB
Triple FDB Module, 1,920 W (x3)
FG606-67
RDM-HFDB
Heavy-Duty FDB Module, 2,400 W
FG606-68
APPLICATION
• 3-Wire Fluorescent Dims 3-wire FDB-style electronic fluorescent ballasts
• Provides variable phase control for dimming
• Positive air gap relay for power
• For use with Lutron FDB and ECO-10 ballasts
• Also used for fluorescent dimming with dimming interfaces by others
RADIA SWITCH MODULES
RDM-SWM
Switch Module, 20A
FG606-50
APPLICATION
• 20A positive air-gap relay
• General-purpose switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications.
RDM-2SWM
Dual Switch Module, 20A
FG606-51
APPLICATION
• Two 20A positive air-gap relay
• General-purpose switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-3SWM
Triple Switch Module, 20A
FG606-52
APPLICATION
• Three 20A positive air-gap relay
• General-purpose switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RADIA DIMMER MODULES
RDM-3EM
Heavy Duty Energy Management Relay Module, 20A
FG606-81
• Three 20A relays - Non-phase dependent
• On-board module microprocessors - supports relay control and sequencing
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
• Incandescent, transformer, low voltage, general purpose load types
RDM-6EM
Heavy Duty Energy Management Relay Module, 20A
FG606-80
• Six 20A relays - Non-phase dependent
• On-board module microprocessors - supports relay control
and sequencing
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
• Incandescent, transformer, low voltage, general purpose
load types
*LIMITED AVAILABILITY*
*LIMITED AVAILABILITY*
