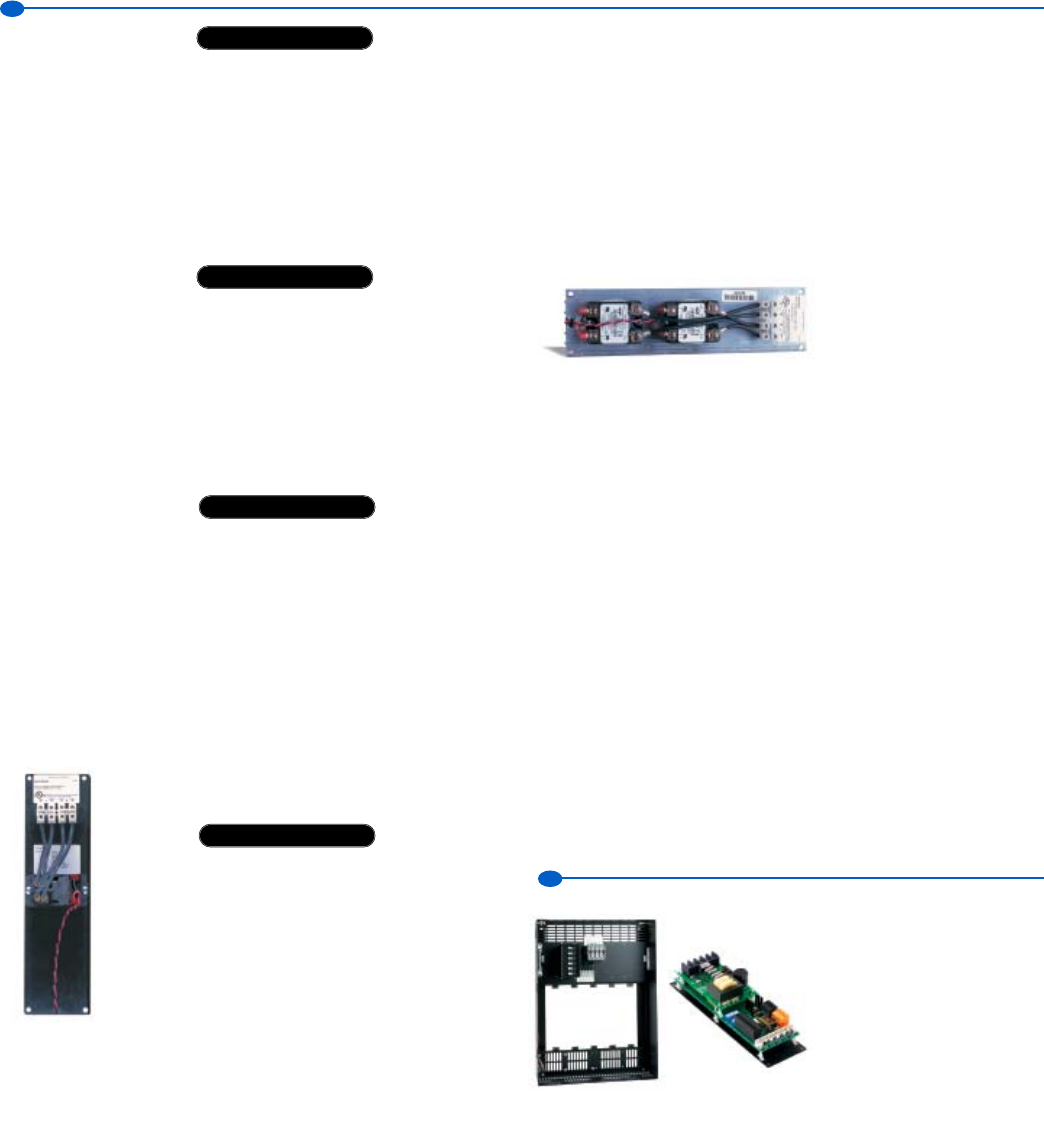

RDK-ENC6B
Radia 6-Channel Pro Dimmer Kit,
120 or 240 VAC
FG606-93K
Includes RDA-ENC6B/120
enclosure and one
RDC-PDC/120 card
FG606-94K
Includes RDA-ENC6B/240
enclosure and one
RDC-PDC/240 card
APPLICATION
• Supports multi-phase wiring for RDA-PDC Dimmer Card
• Includes six 20A circuit breakers 120/208 VAC, 4W+G
• Provides six spaces for Radia Lighting Modules
• Mounts RDC-PDC cards in dedicated, pre-wired compartment
• 18 knockouts for 1/2", 3/4", and 1" conduit
DIMENSIONS (HWD): 24" x 18" x 6" (607 mm x 457 mm x 152 mm)
WEIGHT: 17.5 lbs (8.0 Kg)
RDM-2ZC
Dual Zero Cross Module,
20 A (x2)
FG606-41
APPLICATION
• 20A dual-channel module switches fixtures at the zero-cross point of
AC wave form
• Two 40A solid-state SCRs
• Recommended for electronic fluorescent ballasts
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-ZC50
Zero Cross Module, 50A
FG606-43
APPLICATION
• 50A module switches fixtures at the zero-cross point of AC wave form
• High-output solid-state SCR
• Recommended for electronic fluorescent ballasts
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
PRO DIMMER KITS
RDM-DPSM
Double Pole Single Throw Module, 20A
FG606-56
APPLICATION
• 20A DPST (Double Pole Single Throw) relay switches both hot and neutral
(or two hots)
• Positive air gap relay
• Recommended for controlling outdoor lighting outlets and sensitive electronics
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-ZC
Zero Cross Module, 20A
FG606-40
APPLICATION
• 20A module switches fixtures at the zero-cross point of AC waveform
• 40A solid-state SCR
• Recommended for electronic fluorescent ballasts
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-HSW
Heavy-Duty Switch Module, 20A
FG606-53
APPLICATION
• 20A heavy-duty positive air-gap relay
• Heavy-duty switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-2HSW
Heavy-Duty Dual Switch Module, 20A (x2)
FG606-54
APPLICATION
• Two 20A heavy-duty positive air-gap relays
• Heavy-duty switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
RDM-3HSW
Heavy-Duty Triple Switch Module, 20A (x3)
FG606-55
APPLICATION
• Three 20A heavy-duty positive air-gap relays
• Heavy-duty switching applications
• Installs in one enclosure space
• UL/CUL listed for continuous-duty operation
• Suitable for 120/240/277 VAC applications
*LIMITED AVAILABILITY*
RADIA SWITCH MODULES
*LIMITED AVAILABILITY*
*LIMITED AVAILABILITY*
*LIMITED AVAILABILITY*
