• Mounts in a wall, lectern, or any flat surface
• Available with a black faceplate
• Available with pushbuttons (MCP/PB) or without pushbuttons (MCP)
LCD
• 5.5" color passive-matrix LCD with a resolution of 320x240 pixels
• Visible area: 5 inches (12.70 cm)
• Screen dimensions (HW): 3.05" x 4.06" (7.75 cm x 10.31 cm)
POWER
• 485 mA @ 12 VDC
MEMORY
• 512KB of SRAM and 2MB of flash for a total of 2.5MB
(2MB available for buttons, icons, bitmaps, and fonts)
DIMENSIONS
• Rack-mount: 5.22" x 19.0" x 2.37" (13.26 cm x 48.26 cm x 6.02 cm)
ENCLOSURES
• 19" (48.3 cm) rack-mount; metal black matte finish (3 rack units
high)
PUSHBUTTONS
• 12 programmable pushbuttons (6 on each side)
REAR CONNECTORS
• AXLink: 4-pin male connector for transfer of data and power to
the AMX Central Controller
COMPATIBILITY
• Axcess and Landmark Control Systems (AXLink is the most common
control standard)
INCLUDED ACCESSORIES
• Low-profile Back Box
• 4-pin female AXLink bus connector
OPTIONAL ACCESSORIES
• PSN2.8 Power supply (can be used on the MCP)
• PSN6.5 Power supply (recommended for use on the MCP)
• External pushbuttons (6 per side)
WEIGHT
• 3.60 lbs (1.60 kg)
CB-MTP
MTP Conduit box
FG027-10
APPLICATIONS
• AXD-MLC and AXD-MLC/PB
• AXD-MCV and AXD-MCV/PB
• AXD-MCP and AXD-MCP/PB

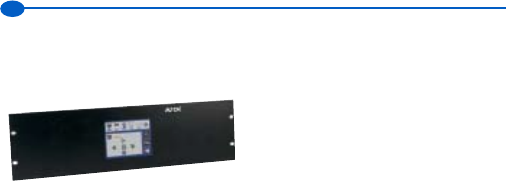

5.5" COLOR PASSIVE TOUCH PANELS
AXM-MCP/PB
5.5" Rack-Mount Color Touch Panel
with External Pushbuttons
FG925-91 Black
