MAX INTEGRATED MUSIC SERVER (MAX-BMS)
Welcome to a new and exciting world of music, where digital content can be stored, accessed, and displayed in the exact same
quality as the original recordings. Build and control a library of CDs (and MP3s) with ease, and instantly play the stored content
simultaneously, to different integrated environments. Introducing MAX, the Integrated Content Server from AMX that makes this
all possible.
Think smart, plan ahead. MAX does these things for you with the Backup
Storage Module, which provides peace of mind. In the rare event that the
MAX IMS were to lose any of the stored information, the BSM will come to
the rescue. The BSM keeps all the original data on backup. Simply transfer the
data from the IMS onto the BMS and save valuable time, knowing it will always
be there.
FEATURES
• Archive your IMS CD database.
• Provides quick and easy backup restoration.
POWER
• 110-240VAC 60/50hz 4.3A
• 150 WATTS
FRONT PANEL
• Blue power LED
• Power switch
REAR PANEL CONNECTIONS
• AC power
• RJ45 Ethernet for external control
• DB9 RS-232 port for external control
CAPACITY
• MAX - BSM 500 – 500 CD capacity FG2177-60
• MAX - BSM 1000 – 1000 CD capacity FG2177-70
• MAX - BSM 1500 – 1500 CD capacity FG2177-80
• MAX - BSM 2500 – 2500 CD capacity FG2177-90
INCLUDED ITEMS
• Power cord
MECHANICAL FEATURES
DIMENSIONS
• 1.75" H x 19" W x 18.50" D (4.45cm x 48.26cm x 46.99cm)
WEIGHT
• MAX - BSM 500 – 19lbs (8.61kg)
• MAX - BSM 1000 – 21lbs (9.52kg)
• MAX - BSM 1500 – 23lbs (10.43kg)
• MAX - BSM 2500 – 24lbs (10.88kg)

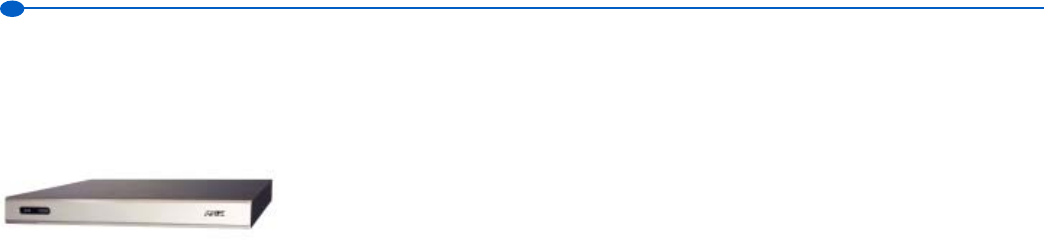

MAX-BSM
Backup Storage Module
For more information about AMX products and services visit www.amx.com
11-03
