The AXF-M/S Axcess Master CardFrame remains the ideal solution for
simplified system design, adaptation and support. It has 16 front-access card
slots that accept slide-in control cards – one for every source controlled.
Choose from nearly 30 types of control cards for virtually any requirement. All
cards include LED status indicators, visible through the removable front cover.
The AXF-M/S Master CardFrame, with an AXC-EM Enhanced System Master
Card, acts as a system master and 16-port controller. The AXF-M/S can
support a backup AXC-EM in the Master Card 2 slot. Each Server CardFrame
adds another 16 control ports to the Master Controller.
CONTROL PORTS
• 16 front-access control card slots
• 16 rear-mounted control cable jacks (16-pin)
INCLUDES
• AXC-S Server Card to manage CardFrame communication
• AXC-EM Enhanced System Master Card included with Master CardFrame
• Master Port on rear panel and on AXC-EM
• Three AXLink ports (electronically identical)
ENCLOSURE: Rack-mount metal with black matte finish
DIMENSIONS (HWD): 3.5" x 19.0" x 14.0"
(89 mm x 483 mm x 356 mm), including rack ears
WEIGHT: 5.5 lbs (2.5 kg)
The AXB-EM232 Enhanced Master/RS-232 Controller combines Axcess Master
processing with one RS-232/422/485 and one RS-232 data port in a single
compact enclosure. This master controller is ideal for systems that need the
power of Axcess programming, yet only a few control ports. Applications
include exhibit laser disc control, voting systems, and an AXLink/RS-232 link
in distributed Axcess systems. The AXB-EM232 may be expanded with bus
devices and CardFrames.
CONTROL PORTS
• One RS-232 port, supports CTS/RTS hardware handshaking
• One RS-232/422/485 port
INCLUDES
• Integrated master processor and features
• Front-panel setup switches and status LEDs
• One AXLink port
ENCLOSURE: Metal with black matte finish
DIMENSIONS (HWD): 1.51" x 5.55" x 6.45"
(38.4 mm x 141 mm x 163.8 mm)
WEIGHT: 1.1 lbs (495 g)
OPTIONS
• AC-RK Accessory Rack Kit
CONTROL PORTS
• Six IR/Serial/RS-232 ports (1-way RS-232 300-38,400 baud, 0-5 VDC)
• Six RS-232/422/485 ports, 9-pin male D-sub connectors (2-way 300-115,200
baud), XON/XOFF, CTS/RTS
• Eight relays (normally open) rated at 750 mA, 28 VAC/24 VDC
Six input/output channels, rated at 200 mA, contact closure or TTL logic inputs
POWER
• 600 mA @ 12 VDC (minimum; not including control cards or bus devices)
INCLUDES
• Front- and rear-panel status LEDs
• Metal tab strips for communing adjacent relays
• Four CC-IRC emitters
• Rack-mount brackets (short)
ENCLOSURE: Metal with black matte finish
DIMENSIONS (HWD): 3.5" x 17.0" x 13.65"
(88.1 mm x 432 mm x 356.8 mm)
WEIGHT: 5.6 lbs (2.6 kg)
SOFTWARE: Open AXCESS Axcess Configuration/Diagnostic Software
OPTIONS
• 12 VDC power supply
• CSB Cable Support Bracket
• AC-RK3 Extended Length Axcent3 Rack Kit
AXCESS CARDFRAMES
The AXF-S Axcess Server CardFrame is still the ideal solution for simplified
system design, adaptation and support. It has 16 front-access card slots that
accept slide-in control cards – one for every source controlled. Choose from
nearly 30 types of control cards for virtually any requirement. All cards include
LED status indicators, visible through the removable front cover. Each Server
CardFrame adds another 16 control ports to the Master Controller.
CONTROL PORTS
• 16 front-access control card slots
• 16 rear-mounted control cable jacks (16-pin)
INCLUDES
• AXC-S Server Card to manage CardFrame communication
• Three AXLink ports (electronically identical)
ENCLOSURE: Rack-mount metal with black matte finish
DIMENSIONS (HWD): 3.5" x 19.0" x 14.0"
(89 mm x 483 mm x 356 mm), including rack ears
WEIGHT: 5.5 lbs (2.5 kg)

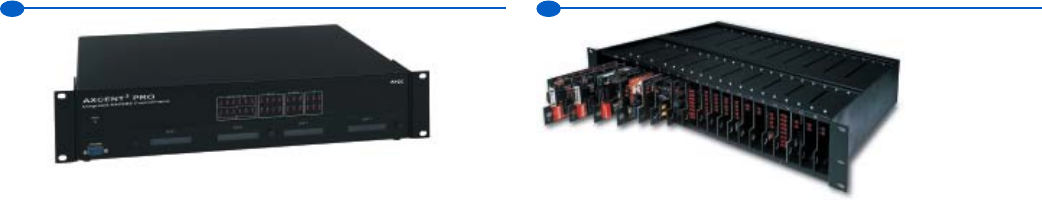

AXCENT 3 PRO
Integrated Axcess ControlFrame
FG5955-30
AXB-EM232
Enhanced Master/RS-232
Controller
FG5909
AXF-S
Axcess Server CardFrame (with AXC-S card)
FG701-K
AXF-M/S
Axcess Master CardFrame
FG701-K
AXCENT 3 & AXCENT3 PRO
