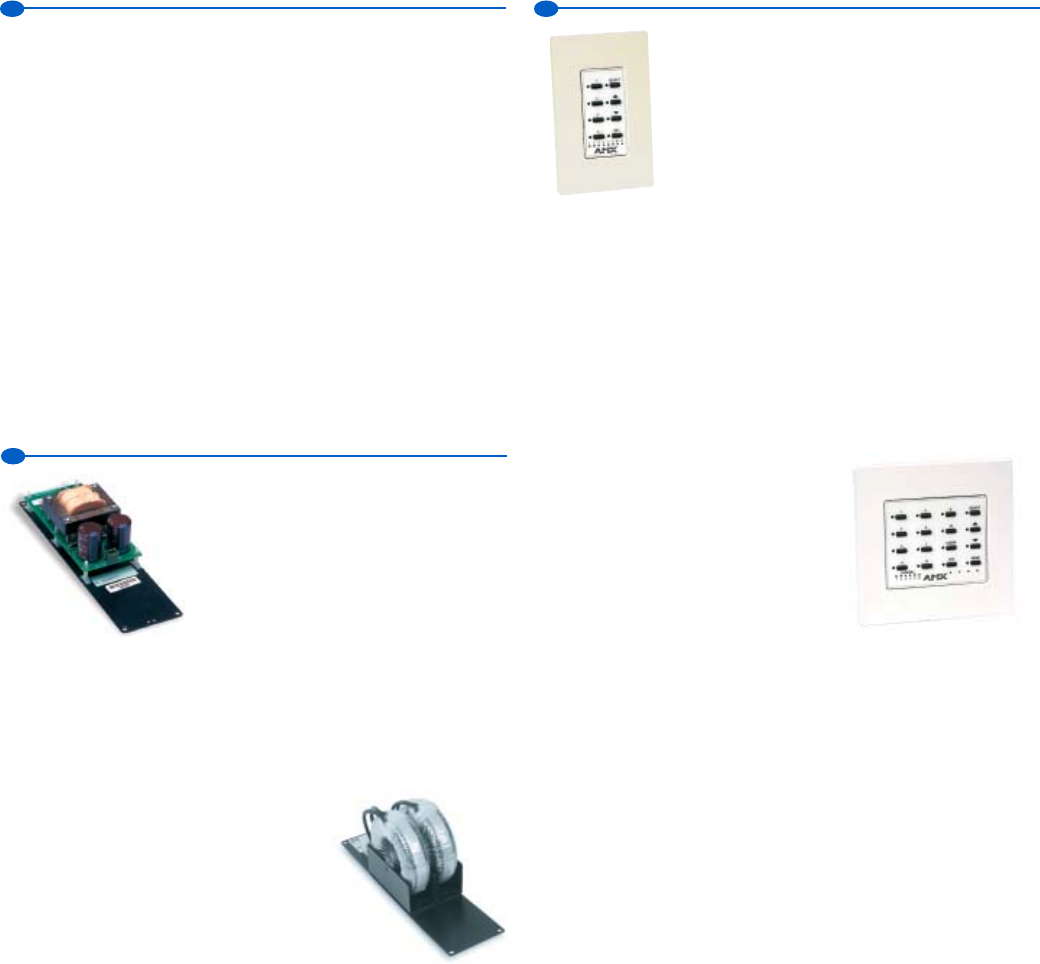

PRO-DP8
Decor PROlink Flush Mount Keypad Panel
(single gang)
FG5790-10 White
FG5790-11 Black
FG5790-12 Ivory
APPLICATION
• Controls up to 12 lighting channels
• Record/playback of five presets
• Playback-only mode for five or eight presets
• Zone select and lighting raise/lower
• Mounts in US style single-gang wall box
WEIGHT: 3.2 oz (90 g)
PRO-DP16
Decor PROlink Flush Mount Keypad
Panel (2 gang)
FG5790-20 White
FG5790-21 Black
FG5790-22 Ivory
APPLICATION
• Controls 60 lighting zones
• Record/playback of 11 presets
• Playback-only mode for 12 or 16 presets
• Channel select and raise/lower
• Mode select
• PGM sets panel in preset programming mode
• PCK mode allows user to select pack (one of 10 6-channel packs)
• CRV selects curve for selected channel
• LE programs low end cut-off point for selected channel
• Mounts in US style two-gang wall box
WEIGHT: 5 oz (130 g)
RDA-DIV
Radia Module Divider
FG606-18
APPLICATION
• Separates 110 from 277/240 Modules in Radia Lighting Enclosure
• Use if required by local code
RDA-EFP
Radia Enclosure Filler Plate
FG606-19
APPLICATION
• Required to fill open spaces in Radia Lighting Enclosures
• Installs in one enclosure space
RADIA PROLINK FLUSH MOUNT KEYPADS
RDA-PSM
12 VDC 2.5A Power Supply Module
FG606-90
APPLICATION
• Provides 12 VDC, 2500 mA power to Radia Lighting Cards and Modules
• Unregulated, class one power supply
• Installs in one enclosure space
RDK-ENC12B
Radia 12-Channel Pro Dimmer Kit, 120 or 240 VAC
FG606-95K Includes RDA-ENC12B/120 enclosure
and two RDC-PDC/120 cards
FG606-96K Includes RDA-ENC12B/240 enclosure
and two RDC-PDC/240 cards
APPLICATION
• Supports multi-phase wiring for both RDA-PDC Dimmer Cards
• Includes 12 20A circuit breakers 120/208 VAC, 4W+G
• Provides six spaces for Radia Lighting Modules
• Mounts RDC-PDC cards in dedicated, pre-wired compartment
• 18 knockouts for 1/2", 3/4", and 1" conduit
DIMENSIONS (HWD): 24" x 18" x 6" (607 mm x 457 mm x 152 mm)
WEIGHT: 17.5 lbs (8.0 Kg)
DIMMER ACCESSORIES
RDA-CKM
Dual Choke Module
FG606-92
Application
• Quiets “problem" incandescent fixtures
• Add to zones operated by Integrated Dimmer Module
onboard dimmers
• Two 350 micro-second chokes
PRO DIMMER KITS
CONFIDENTIAL INFORMATION © 2003 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation.
AMX reserves the right to alter specifications without notice at any time. AMX does not assume responsibility for any errors or omissions.
For more information about AMX products and services visit www.amx.com
11-03
