The AXD-CG10 Color Graphic Active Flush Mount Touch Panel provides
simplified full-size control on walls, in lecterns, and on other flat surfaces. The
AXD-CG10 communicates with the control system over the AXLink data bus.
This panel uses a color active-matrix 10.4" LCD to display interactive control
graphics, a video window that can be resized, and a full-screen display of
computer-driven images.
POWER
• 1 A @ 12 VDC
BASE DIMENSIONS
• 8.88" x 12.88" x 2.19" (22.56 cm x 32.72 cm x 5.56 cm)
BEZEL COLOR OPTIONS
• Black, white or ivory
DÉCOR
®
-STYLE ENCLOSURES
• Matte finish, screwed security overlay
OPTIONS
• CB-TP3 Backbox
WEIGHT
• 6.1 lbs (2.77 kg)
ADDITIONAL PANEL CONFIGURATIONS
AXD-CV10
Color Video Flush Mount, White
FG951-90
AXD-CG10
Color Graphic Flush Mount, Ivory
FG952-95
AXD-CG10
10.4" Color Graphic Flush Mount Touch Panel, Black
FG952-90
AXD-CG10/PB
Color Graphic Flush Mount, External Push Buttons, White
FG951-91
AXD-CG10/PB
Color Graphic Flush Mount, External Push Buttons, Ivory
FG952-96
• Screen tilts for best viewing angle
• 10.4" color-active LCD with a 640x480 pixel resolution
• Features a full-screen VGA graphics window
• Includes a resizeable video window
POWER
• 1 A @ 12 VDC
MEMORY
• 4MB
CONNECTORS
• 4-pin AXLink and 2-pin 12VDC power jacks
• DB-9 male PC/mouse input
• RCA female connector
• 15-pin DB-15 (high density) male connector
BASE DIMENSIONS
• 11.46" x 9.46" (29.12 cm x 24.0 cm)
TILT SCREEN HEIGHTS
• Lowered – 4.14" (10.52 cm)
• Raised – 9.84" (24.99 cm)
WEIGHT
• 4.6 lbs (2.08 kg)
10.4" COLOR GRAPHIC ACTIVE TOUCH PANELS
Size and functionality make the 10.4" Touch Panel one of the most universally accepted user interfaces in the industry.
Sleek and unobtrusive, it fits into any decor and accommodates all the controls needed for a system of any size.

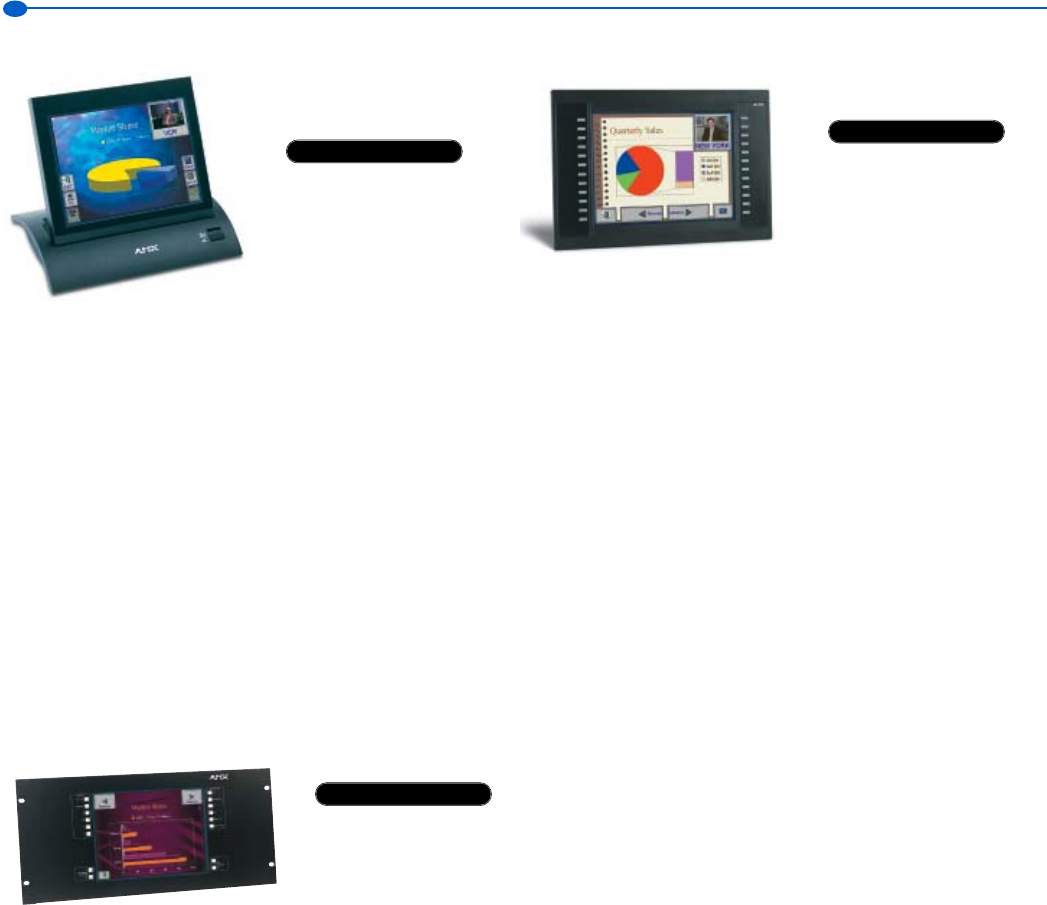

AXT-CG10
10.4" Color Graphic
Table Top Touch Panel
FG950-60
AXD-CG10/PB
Color Graphic Flush Mount,
External Push Buttons, Black
FG952-91
AXM-CG10/PB
10.4" Color Graphic Video
Rack Mount Touch Panel,
External Buttons
FG952-61
The AXM-CG10 10.4" Color Active Graphic Rack-Mount Touch Panel is the
ultimate power tool, complete with full-screen graphics, video and control
functions – all within the same, integrated, graphic Touch Panel.
POWER
• 1 A @ 12 VDC
DIMENSIONS
• 8.72" x 19.00" x 8.1" (22.15 cm x 48.26 cm x 4.62 cm)
• 19.0" Rack Mount, Metal with black matte finish, 5 rack units high
WEIGHT
• 6.1 lbs (2.77 kg)
ADDITIONAL PANEL OPTION
AXM-CG10
Color Graphic Rack Mount
FG952-60
*LIMITED AVAILABILITY*
*LIMITED AVAILABILITY*
*LIMITED AVAILABILITY*
