Chapter 1 Product Overview
Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)
Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)
The Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) is a member of the Cisco ME 6500 series
Ethernet switches. The Cisco
ME 6524 Ethernet switch (ME-C6524GT-8S) is a 1.5 RU horizontal
chassis with 24
10/100/1000 downlink ports and 8 1000BASE SFP uplink ports. Figure 1-3 shows the
front view of the chassis with the major features identified; Figure 1-4 shows the rear view of the chassis
with the major features identified.

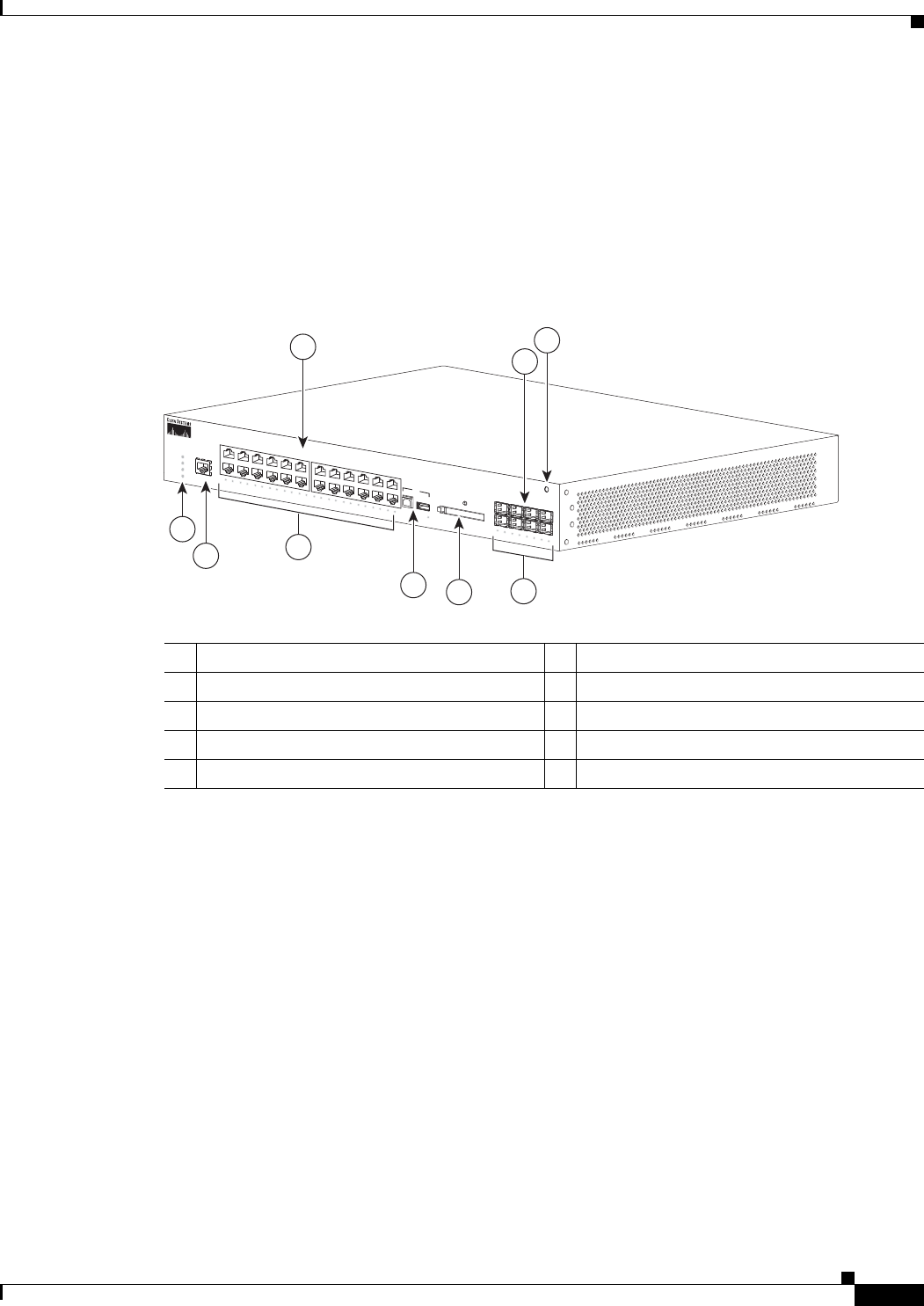

Figure 1-3 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)—Front View
1 Status LEDs 6 Uplink ports LEDs
2 Console port (RJ-45 connector) 7 ESD chassis ground connector
3 Downlink ports LEDs 8 Uplink ports (SFP transceivers required)
4 USB ports 9 Downlink ports (RJ-45 connectors)
5 PCMCIA connector
180415
