Cisco ME 6500 Series Ethernet Switch Installation Guide
OL-8900-03
Chapter 1 Product Overview
Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)

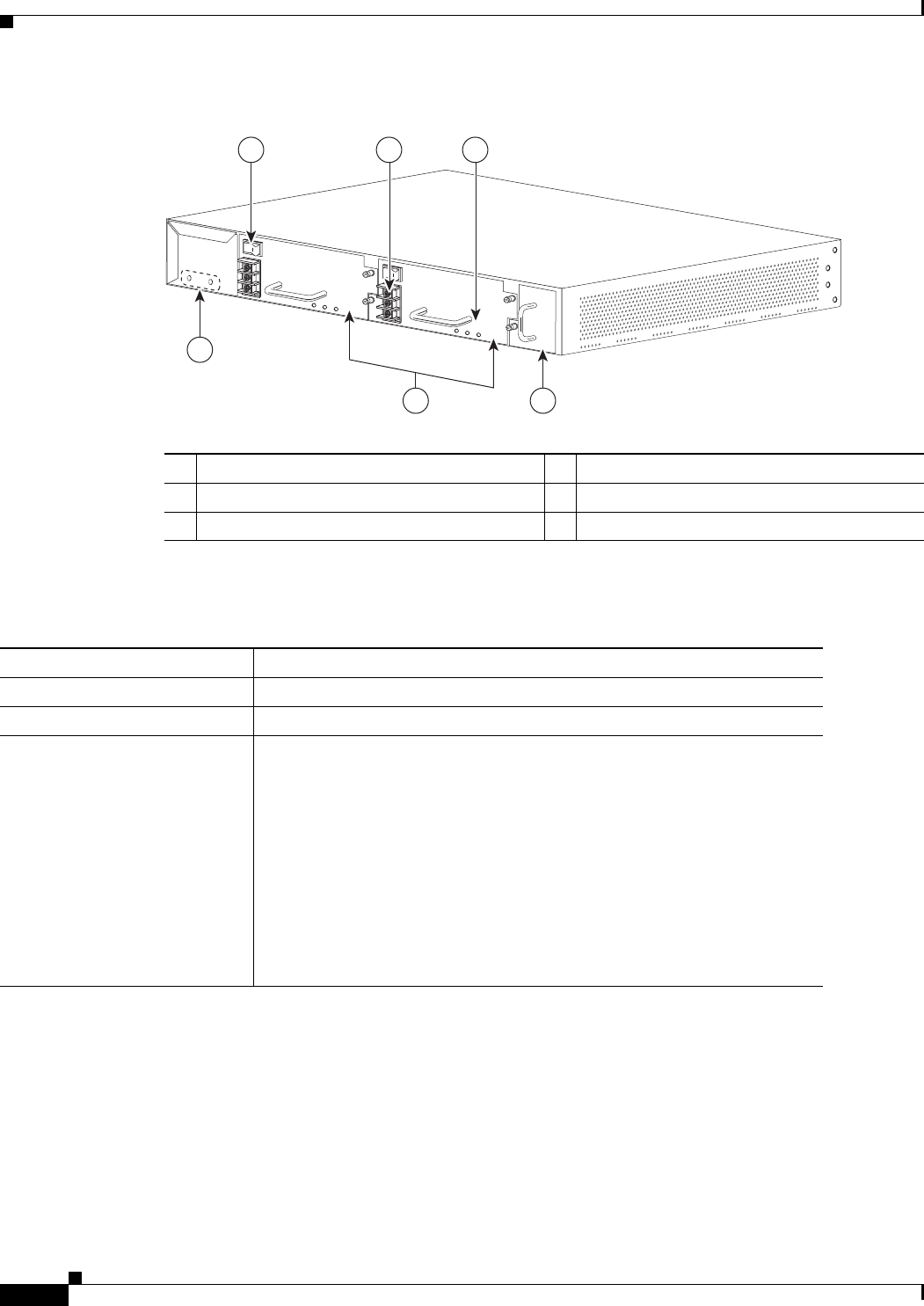

Figure 1-4 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S)—Rear View
Table 1-3 lists the features of the Cisco ME 6524 Ethernet switch (ME-C6524GT-8S) chassis.
1 System ground pad/NEBS ground location 4 Power supply status LEDs
2 Power supplies 5 Power supply terminal block
3 Fan tray 6 Power on/off switch
147978
INP
U
T
OK
OU
TPU
T
O
K
FAN
O
K
INPUT
O
K
O
UTPUT
OK
FA
N
O
K
o
o
+
-
+
-
1
2
456
3
Table 1-3 Cisco ME 6524 Ethernet Switch (ME-C6524GT-8S) Features
Feature Description
Chassis 1.5 RU height, fixed configuration chassis
Modules Fixed configuration chassis; modules cannot be installed in the chassis.
Fan tray • The chassis supports one hot-swappable fan tray. One fan tray model is
available:
–
FAN-C6524
Note The fan tray contains seven individual fans for chassis cooling. The
individual fans are not field replaceable; you must replace the fan
tray.
• Fan tray FAN LED
–
Green—Fan tray is operating normally.
–
Red—One or more individual fans have failed.
