2-9
Cisco ME 6500 Series Ethernet Switch Installation Guide
OL-8900-03
Chapter 2 Preparing for Installation
Power Requirements

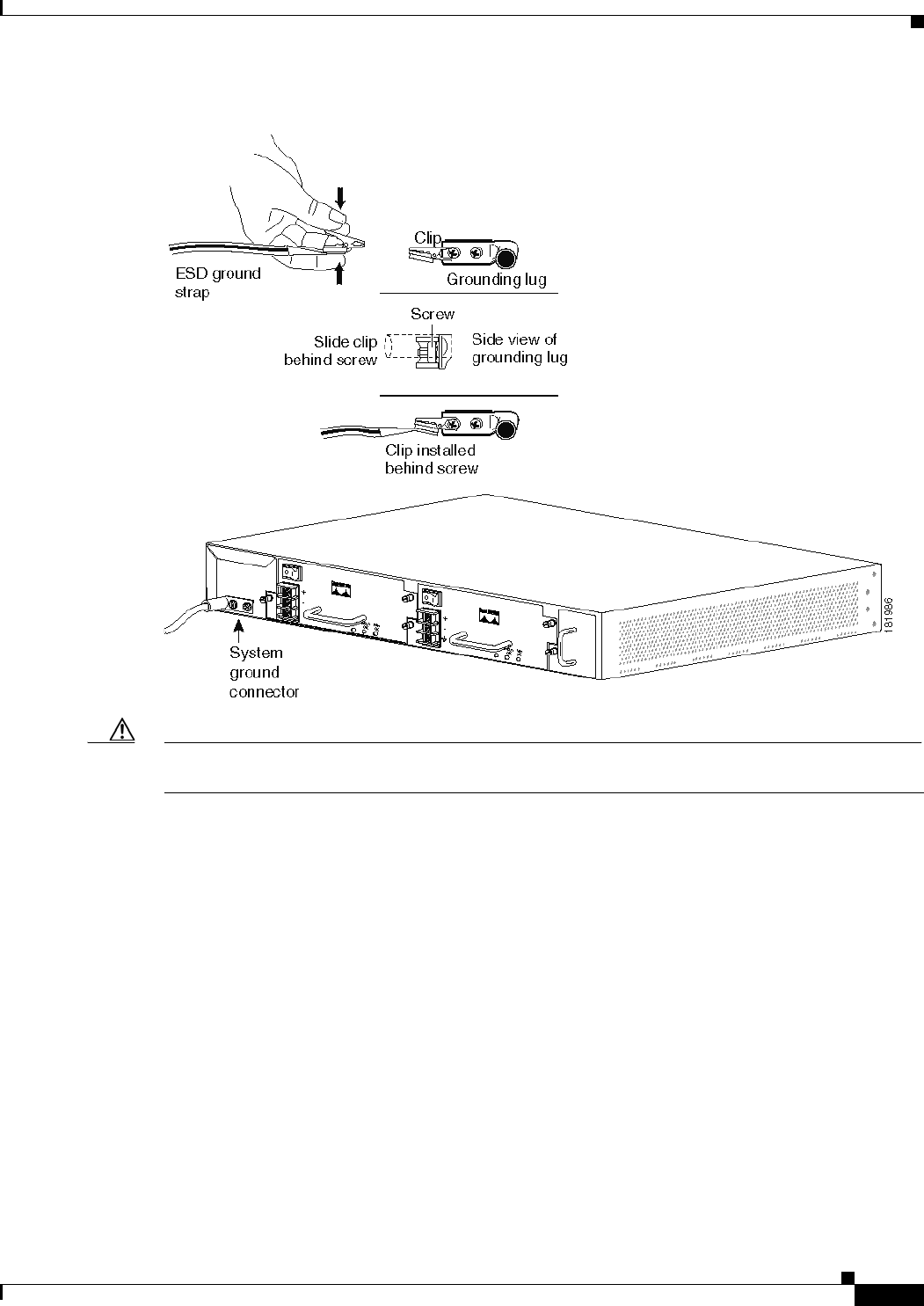

Figure 2-1 Attaching the ESD Wrist Strap Clip to the System Ground Lug Screw
Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be
between 1 and 10 megohm (Mohm).
Power Requirements
The ME 6524 chassis can physically accommodate two power supplies. Two types of power supplies are
currently available:
• A 400 W AC-input power supply
• A 400 W DC-input power supply
The ME 6524 chassis supports the following power supply configurations:
• Two AC-input power supplies
• Two DC-input power supplies
• One AC-input power supply and one DC-input power supply
The next two sections provide basic guidelines for connecting AC-input power supplies to the site source
AC and for connecting DC-input power supplies to the site source DC.
