8 If a Mini PCI card is not already installed, go to step 9. If you are replacing a Mini PCI
card, remove the existing card:
a Disconnect the Mini PCI card from any attached cables.
b Release the Mini PCI card by spreading the metal securing tabs until the card
pops up slightly.
c Lift the Mini PCI card out of its connector.
9 Align the new Mini PCI card with the connector at a 45-degree angle, and press the
Mini PCI card into the connector.
10 Connect the antenna cables from the Mini PCI card to the antenna connectors on the
computer.
NOTICE: The connectors are keyed for correct insertion; do not force the connections.
11
Lower the Mini PCI card toward the inner tabs to approximately a 20-degree angle.
12 Continue lowering the Mini PCI card until it snaps into the inner tabs of the
connector.
13 Replace the cover.

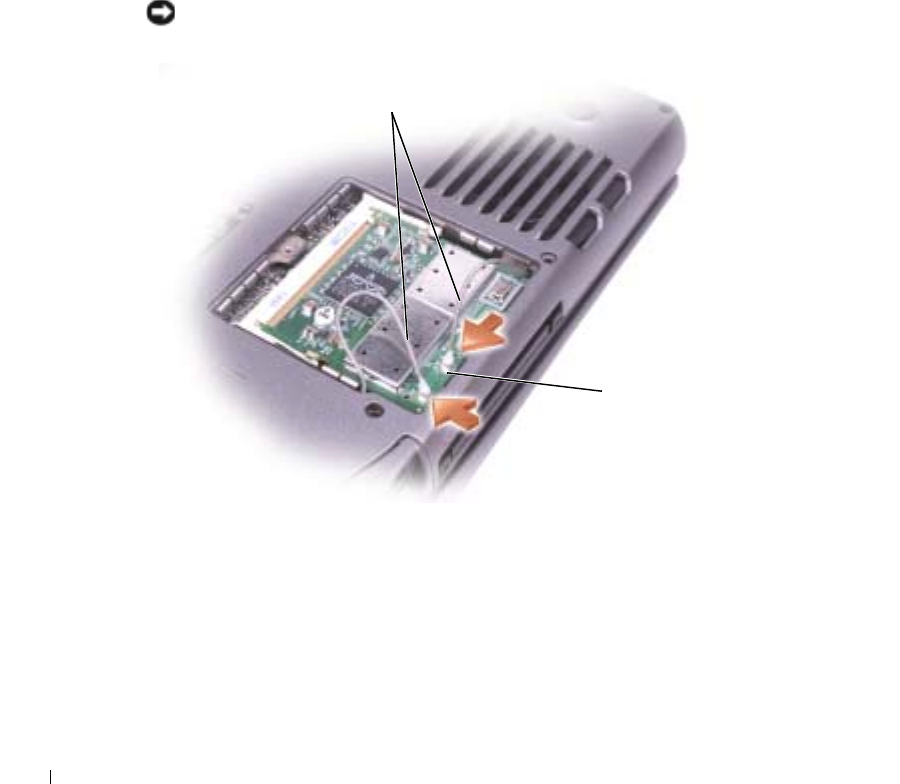

antenna connectors on card (2)
antenna cables (2)
