Hardware Setup
20
D6300 WiFi DSL Modem Router
Summary
• One-line ADSL microfilter (not included). Use with a phone or fax machine.
• S
plitter (not included). Use with a one-line ADSL microfilter to share an outlet with a
phone and the WiFi modem router.
• T
wo-line ADSL microfilter with built-in splitter (included). Use to share an outlet with a
phone and the WiFi modem router.
Cable Your D6300 WiFi DSL Modem Router
WARNING:
DO not stack equipment, or place equipment in tight spaces, or in
drawers. Be sure that your equipment is surrounded by at least
2
inches of air space. The unit should not be wall mounted.

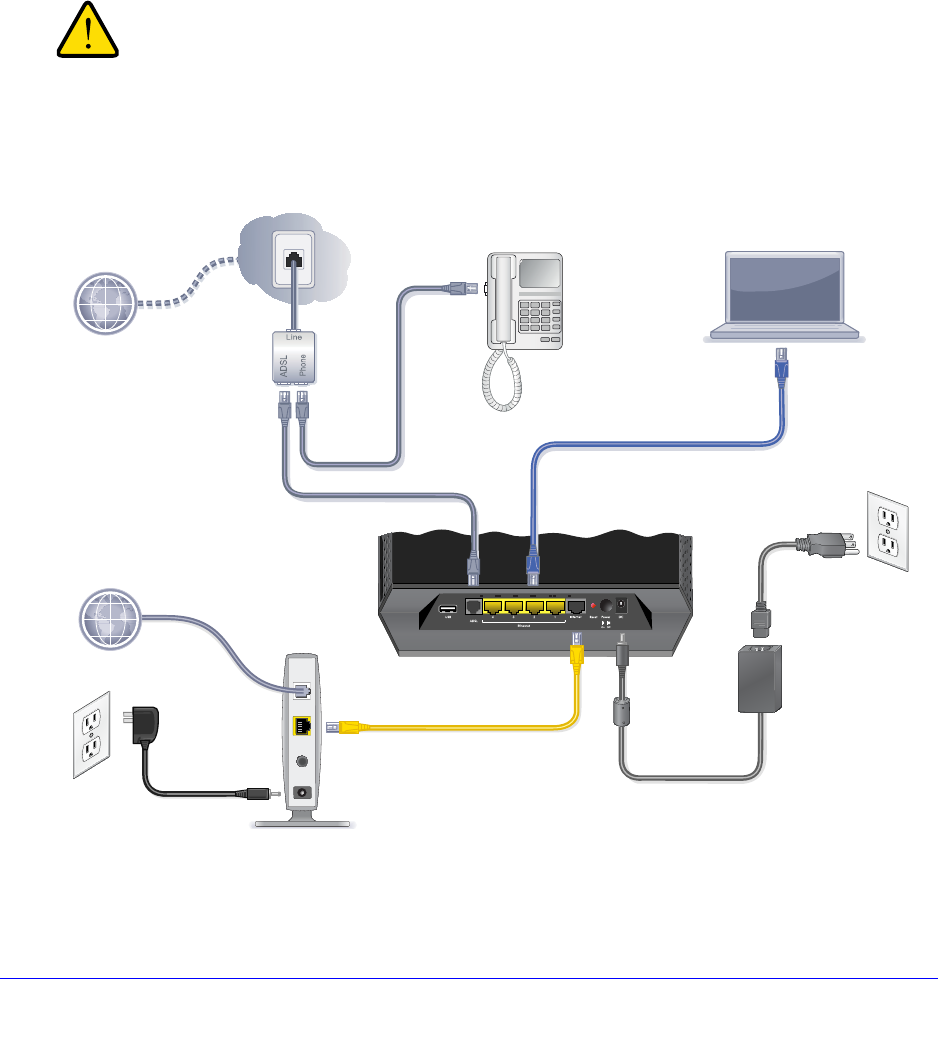

The installation guide that came in the box has a cabling diagram on the second page.
1 ADSL or
Cable Fiber
Modem
2 Power
3 Computer
4 Browser
Figure 8. Cabling diagram
