System connections
System applications
■ When using an external VTR as the editing source unit
• The external VTR can be operated using the VTR1 control buttons of this unit.
• Set the CONTROL switch on the keyboard panel to EXT VTR.
Regardless of the positions of the OPERATION MODE and AUDIO INPUT SELECT switches, the signals connected to the
VTR2’s VIDEO IN and AUDIO IN connectors will be supplied.
<Notes>
• It is necessary to change the PLAY DELAY setting when certain types of external VTRs are used.
• The external VTR’s signals can be checked on the LCD monitor of VTR1 and through its speaker when V2 V+A is set for set-
up menu item No.105 (VTR1 IN SEL).
• None of VTR1’s on-screen displays (counter, etc.) can be shown when the CONTROL switch is set to the EXT VTR mode.
However, these displays can be shown on the screen of VTR1 using the connections and settings outlined below when an
external VTR with a superimpose display function is used.
• The VTR1’s INPUT and REF displays do not appear when the CONTROL switch is set to the EXT VTR mode.

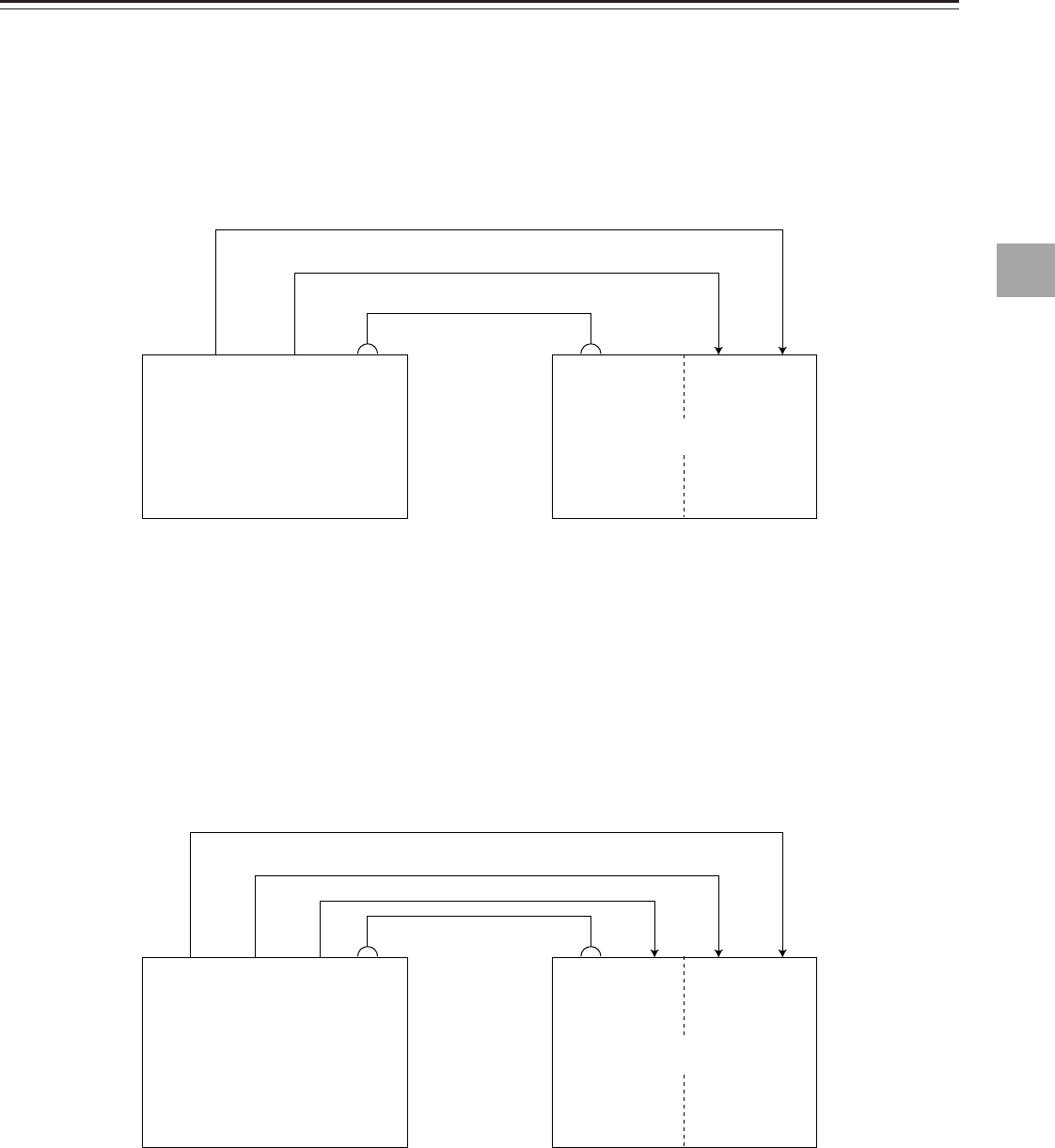

Switch settings
CONTROL: EXT VTR
PLAY DELAY: VTR1: 0
VTR2: 4
VIDEO
IN
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
VTR1 VTR2
AJ-LT85External VTR
9P 9P
Switch settings
CONTROL: EXT VTR
VTR1 IN SEL (set-up menu item No.105): V2 A
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
OUT
AUDIO
IN
AUDIO
OUT
VTR1 VTR2
AJ-LT85
External VTR
9P 9P
(Superimpose)
