To use the optional wall mount to mount the digital imager scanner on a wall, place the mount in the desired
location on the wall and secure by inserting two screws* appropriate for the mounting surface through the
screw holes on the mount, and into the surface. Insert the digital imager scanner into the mount as shown.

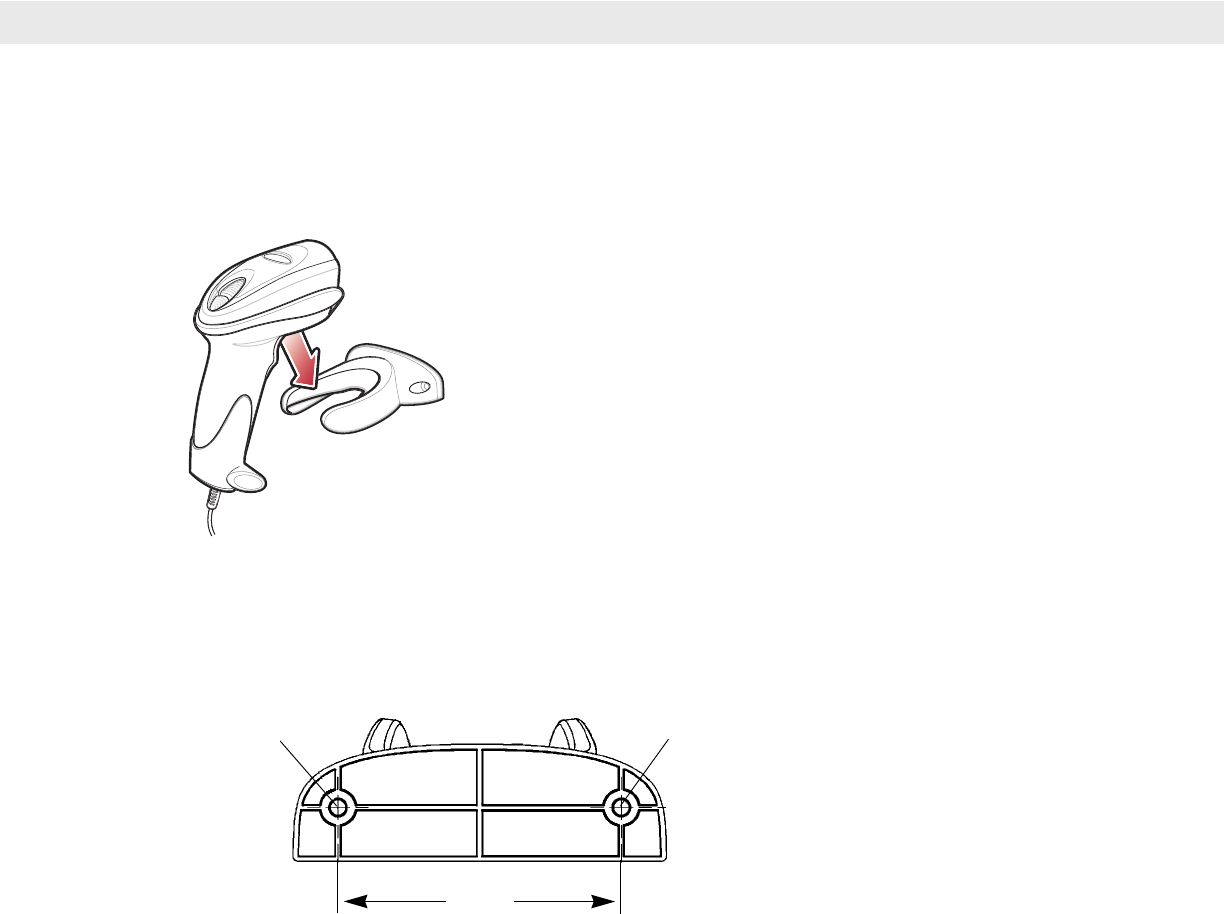

Figure 1-5
Securing the Wall Mount
*The recommended screws are two #6 screws (1” long) and two #6 washers.
For convenience, print this page and use the template below for mounting hole locations.
Figure 1-6
Wall Mounting Template
2.98”
Insert mounting
screw
Insert mounting
screw
