Scanning 2 - 5
4. Center the symbol in any orientation within the aiming pattern. Be sure the entire symbol is within the
rectangular area formed by the brackets in the pattern.

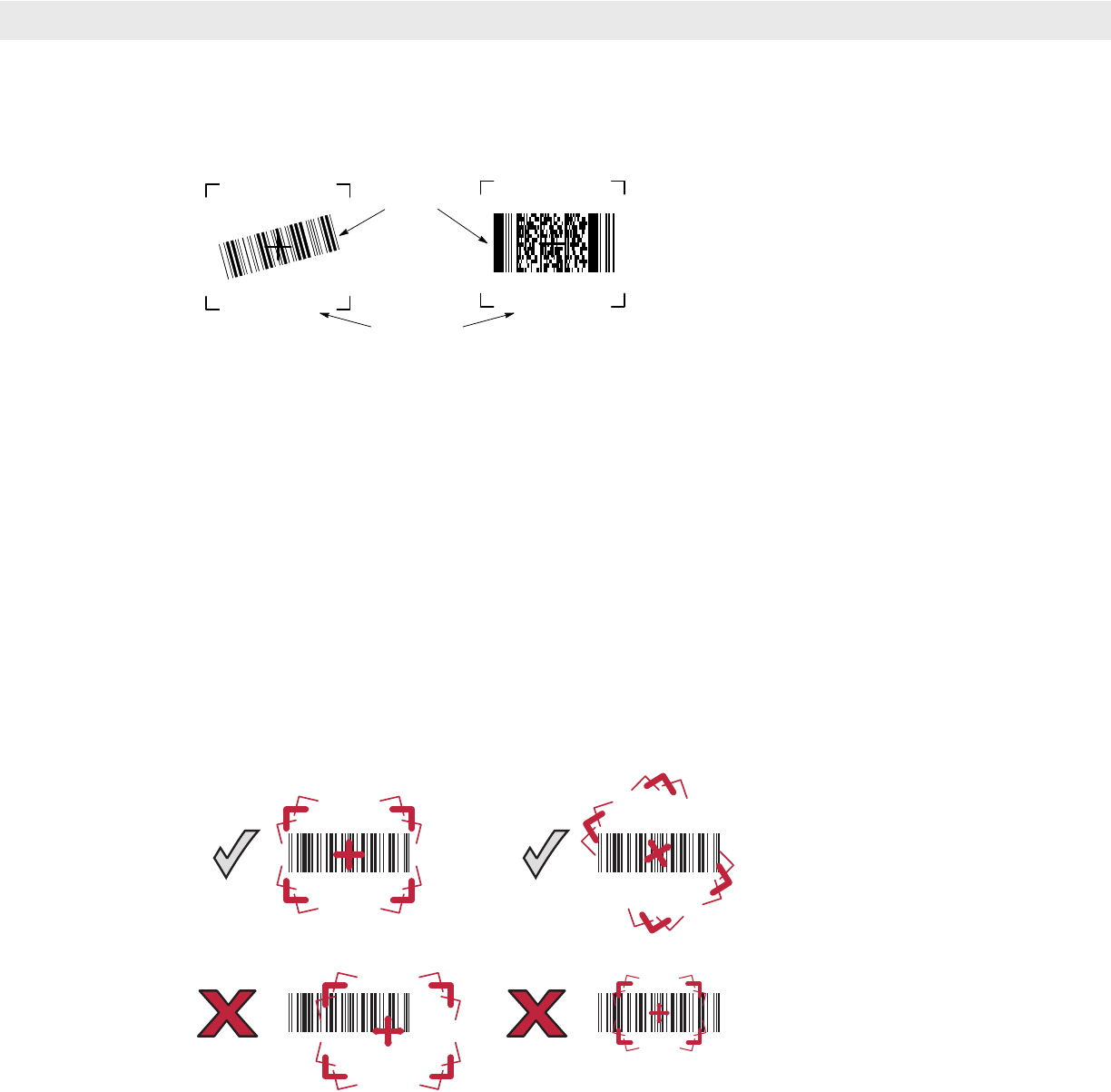

Figure 2-10
Centering Symbol in Aiming Pattern
5. Hold the trigger until the digital imager scanner beeps, indicating the bar code is successfully decoded. For
more information on beeper and LED definitions, see Table 2-1 and Table 2-2.
This process usually occurs instantaneously. Steps 2 - 4 are repeated on poor quality or difficult bar codes, until
the bar code is decoded, the trigger is released, or the Decode Session Timeout is reached.
Aiming
Hold the digital imager scanner between two and nine inches (depending on symbol density; see Decode
Zones on page 2-7) from the symbol, centering the aiming pattern cross hairs on the symbol.
The aiming pattern is smaller when the digital imager scanner is closer to the symbol and larger when it is
farther from the symbol. Scan symbols with smaller bars or elements (mil size) closer to the digital imager
scanner, and those with larger bars or elements (mil size) farther from the digital imager scanner.
The digital imager scanner can also read a bar code presented within the aiming pattern but not centered. The
top examples in Figure 2-11 show acceptable aiming options, while the bottom examples can not be decoded.
Figure 2-11
Acceptable and Incorrect Aiming
Linear bar code
PDF417 symbol
Symbol
Aiming Pattern
1D bar code
2D bar code
012345
012345
012345
012345
