4.15 Modem Card
Remove the modem card according to the following procedures and Figure 4.28.
card.
Removing the Modem Card
1. Remove two M2x6 screws that secure the modem
2. Flip the modem card over, and detach the cable connected to the card.

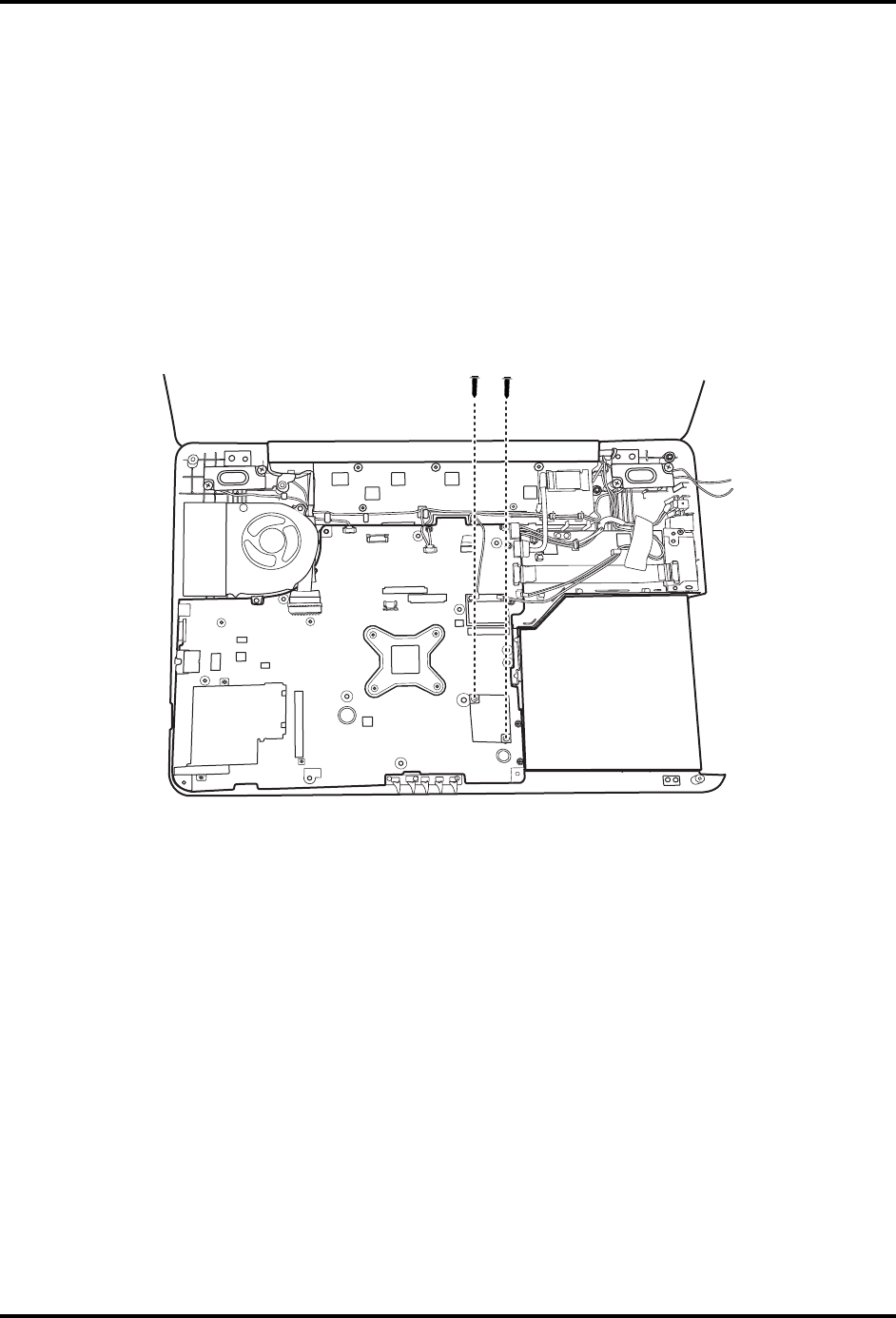

Figure 4.28 Removing the modem card
Installing the Modem Card
Install the modem card according to the following procedures.
1. Attach the cable to the back of the modem card.
2. Install the card in the correct position and secure it with two M2.5x3 screws.
M2x6*2
Satellite L500 Maintenance Manual 4-40
