21
8. Repeat this procedure for the second processor.
Cooling Fan Installation
After you have installed the processor, the heatsink should be installed to
ensure that the processor runs efficiently and does not overheat. Use the
heatsink supplied for best results.
Follow these instructions to install the heatsink shown.
1. Apply some (a little will work, more doesn’t equal better performance)
thermal compound to the top of the processor. Try and apply a thin, even
layer over the top of the processor.
2. Align the heatsink with the four holes around the processor socket.
3. Press the heatsink down until the four screws are securely seated in the
holes.
4. Use screw drive to secure the four screws.

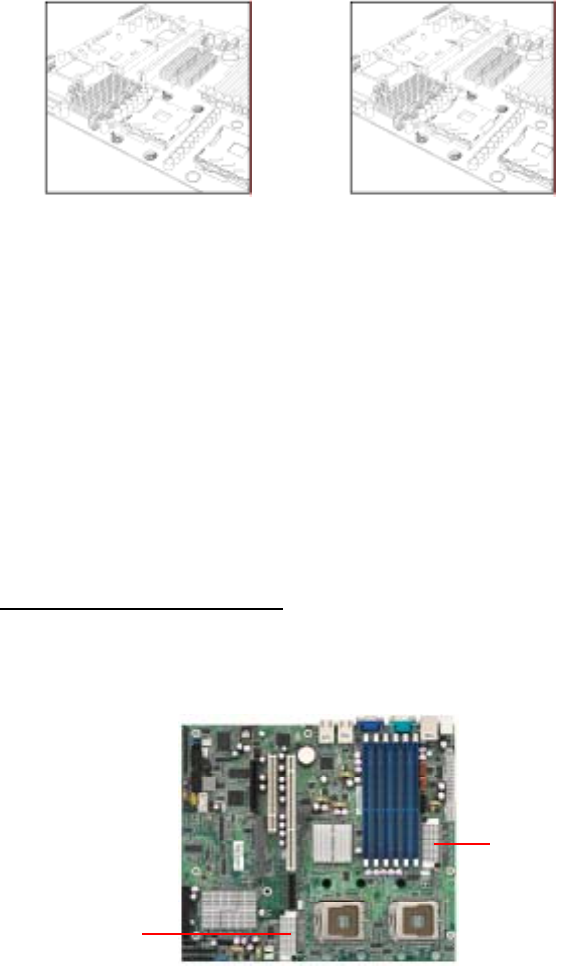

CPU VRD Heat Dispersion Notice
INSTALL FAN INTO CHASSIS TO LET AIR FLOW IN!!!
-To ensure that the board runs efficiently and does not overheat, make sure
there is air flow around the CPU VRD (as shown) to help disperse the heat
generated around the CPU.
CPU VRD
CPU VRD
