AXIS 700 User’s Manual Section 2: Basic Installation
13
Physical Description
Back Panel
Network Connectors The AXIS 700 is equipped with 10baseT and 10base2 connectors for
connection to the Ethernet network.
Power Supply The AXIS 700 can use either the AXIS PS-C or AXIS PS-E power
supply.
Reset Button The reset button is used for restoring the factory default settings. See
“Restoring Factory Default Settings” on page 69.
SCSI Connector The AXIS 700 is equipped with a 50 pin SCSI connector for
connection to a scanning device.
Front Panel The front panel indicators show the status of the AXIS 700. The
indicators have the following functions:
Status The status indicator flashes during start-up and turns off when the
AXIS 700 is ready for use. If it remains on, check the LCD for error
messages.

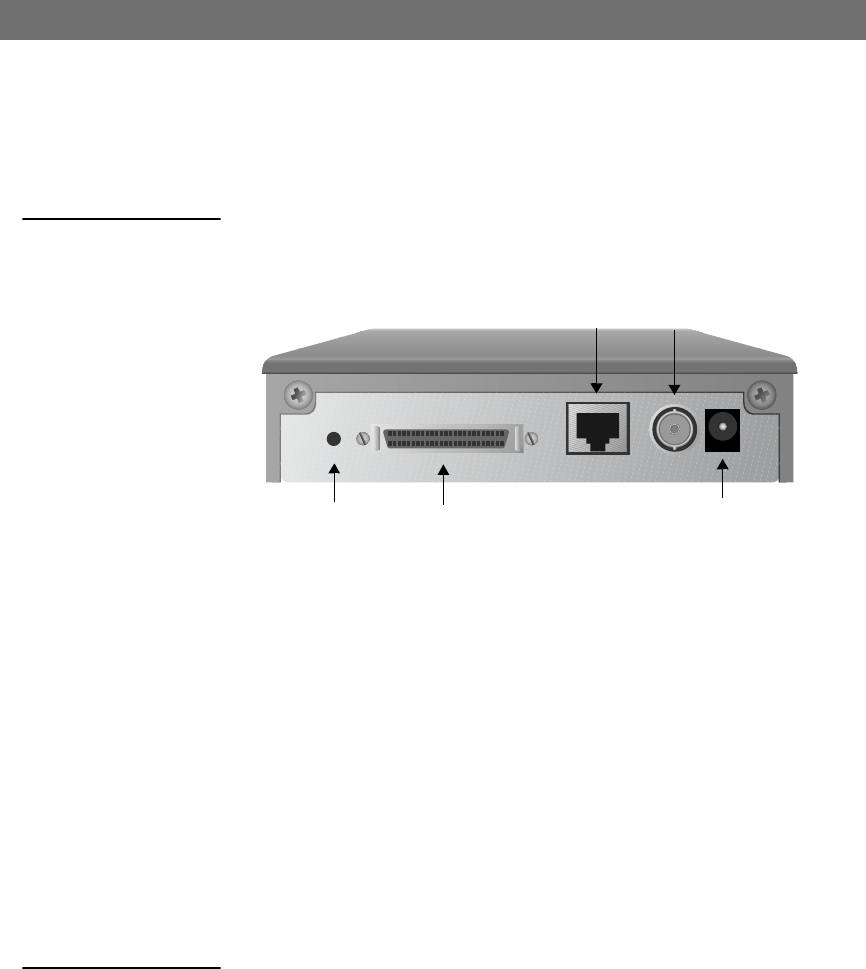

SCSI connector
Network connectors
Power supply
10baseT 10base2
Reset button
