DXS/DWS 3200 Series User Guide
Page 110
– Not in Auto Mode — Indicates that the port control is Forced Authorized, and clients have full port
access.
– Single-host Lock — Indicates that the port control is Auto and a single client has been authenticated via
the port.
• Learning Mode — This mode has 2 value options: 'Classic Lock' and 'Limited Dynamic Lock'. Classic Lock -
immediately lock the port from learning new MAC Addresses. Limited Dynamic Lock - this parameter
depends on the 'Max Entries' parameter value
• Max Entries — Number of MAC addresses which the port learns until the Limited Dynamic Lock parameter
locks it.
• Action — Indicates the action to be applied to packets arriving on a locked port. The possible field values
are:
– Forward — Forwards packets from an unknown source without learning the MAC address.
– Discard — Discards packets from any unlearned source. This is the default value.
– Shutdown — Discards packets from any unlearned source and shuts down the port. The port remains
shut down until reactivated, or until the device is reset.
• Trap — Enables traps when a packet is received on a locked port. The possible field values are:
– Checked — Enables traps.
– Unchecked — Disables traps.
• Trap Frequency (Sec) — The amount of time (in seconds) between traps. The default value is 10 seconds.

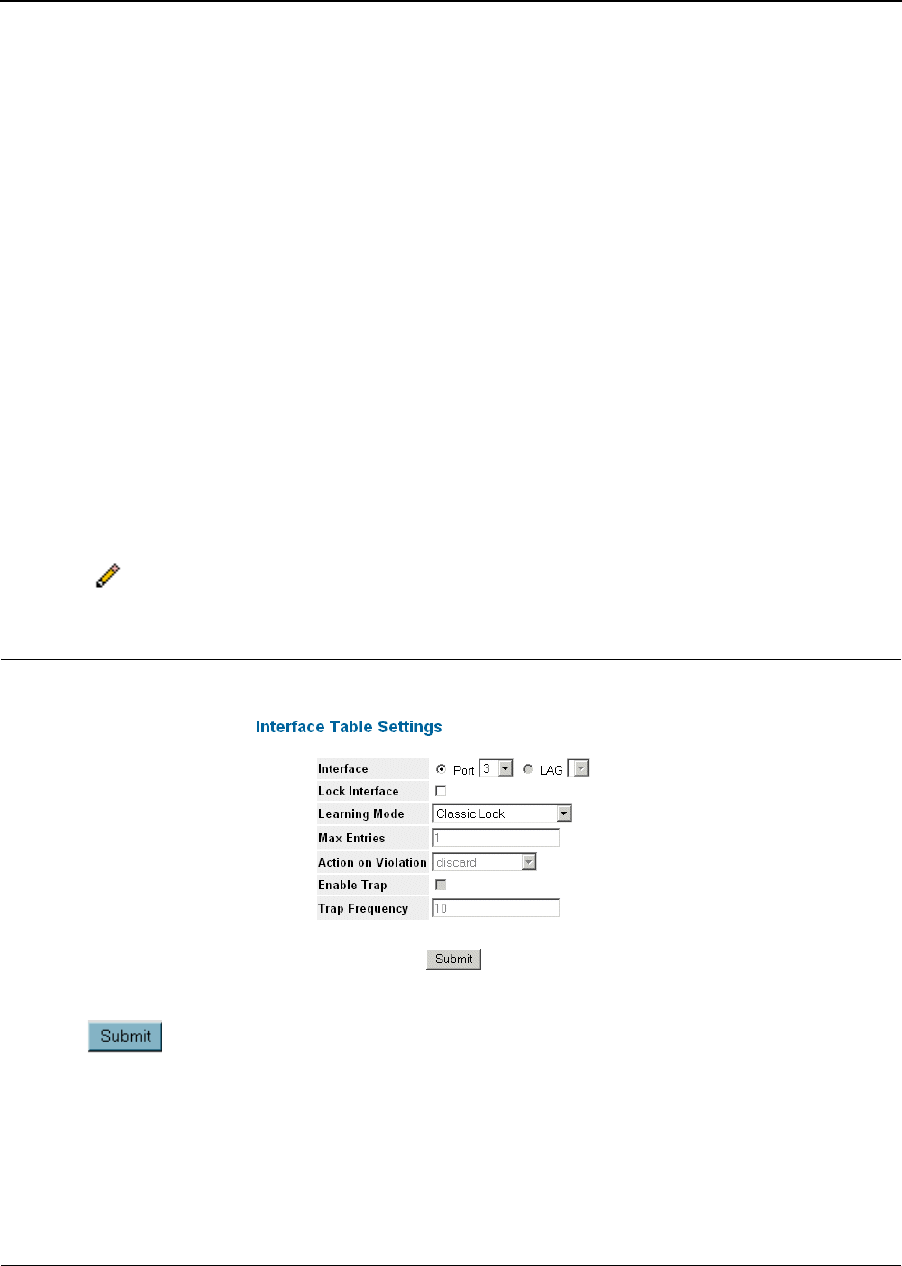

2. Click . The Port Security Settings Page opens:
Figure 60: Port Security Settings Page
3. Modify the fields.
4. Click . The port security settings are defined, and the device is updated.
