Hardware Setup
19
D6200 WiFi DSL Modem Router
ADSL microfilter into the wall outlet, plug your phone equipment into the jack labeled Phone,
and plug the wireless modem router into the jack labeled ADSL.
Plugs into the ADSL line

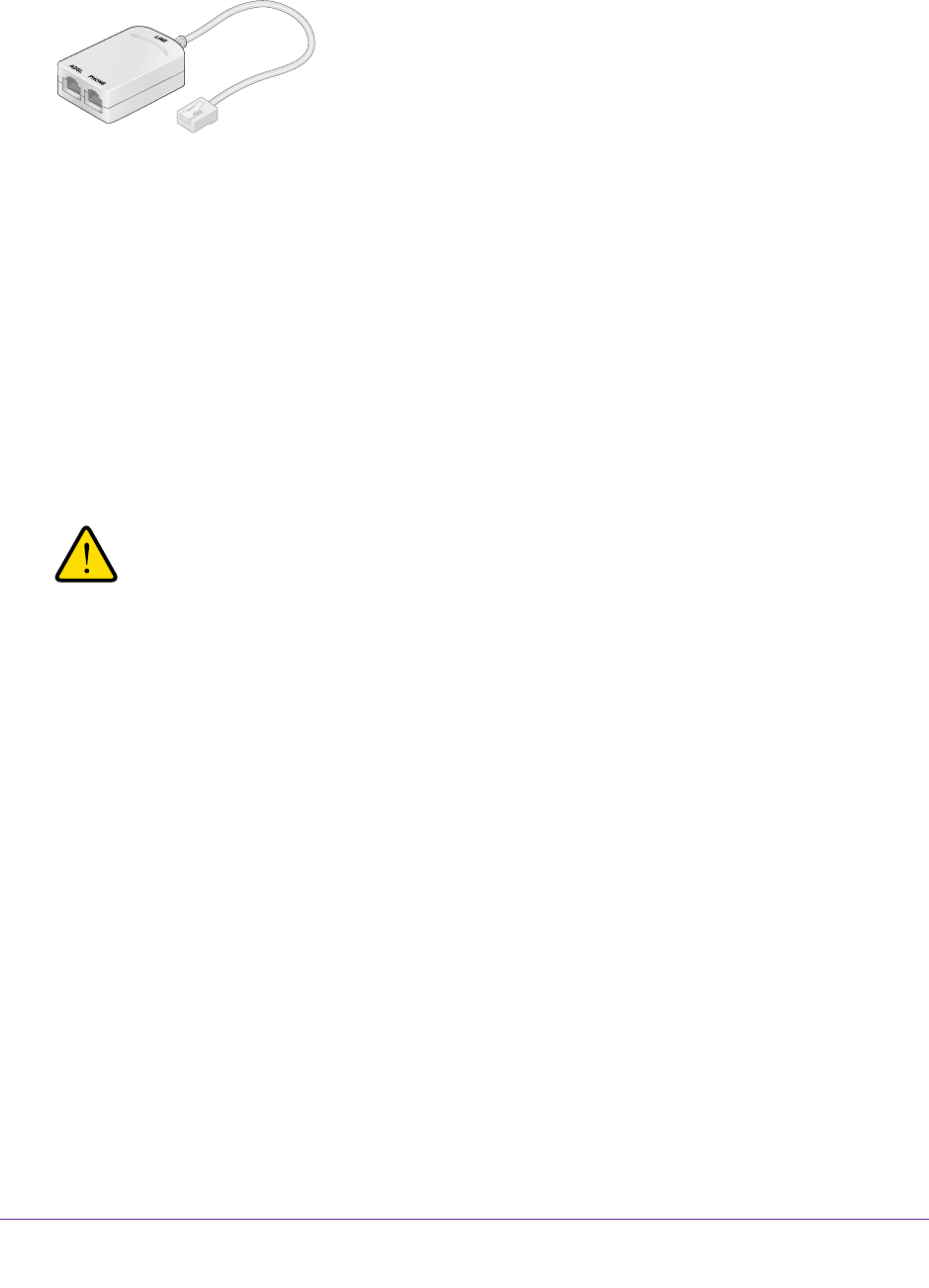

Figure 7. Two-line ADSL microfilter with built-in splitter
Summary
• One-line ADSL microfilter (not included). Use with a phone or fax machine.
• Splitter (not included). Use with a one-line
ADSL microfilter to share an outlet with a
phone and the WiFi DSL modem router.
• T
wo-line ADSL microfilter with built-in splitter (included). Use to share an outlet with a
phone and the WiFi DSL modem router.
Cable Your D6200 WiFi DSL Modem Router
WARNING:
Do not stack equipment or place equipment in tight spaces, in
drawers, or on carpets. Be sure that your equipment is surrounded
by at least 2 inches of air space. The unit should not be wall
mounted.
