Install The Ferrite
17
3. If you have the expansion-CT option:
a. Loosen one screw and remove the other screw that
secures the expansion-CT subassembly to the rear of the
printer frame. (Figure 3.)
b. Carefully lift the expansion-CT subassembly and CT
adapter plate out of the frame cutout.
c. Unplug the expansion-CT cable from the expansion-CT
port on the controller PCBA and set the expansion-CT
subassembly aside.

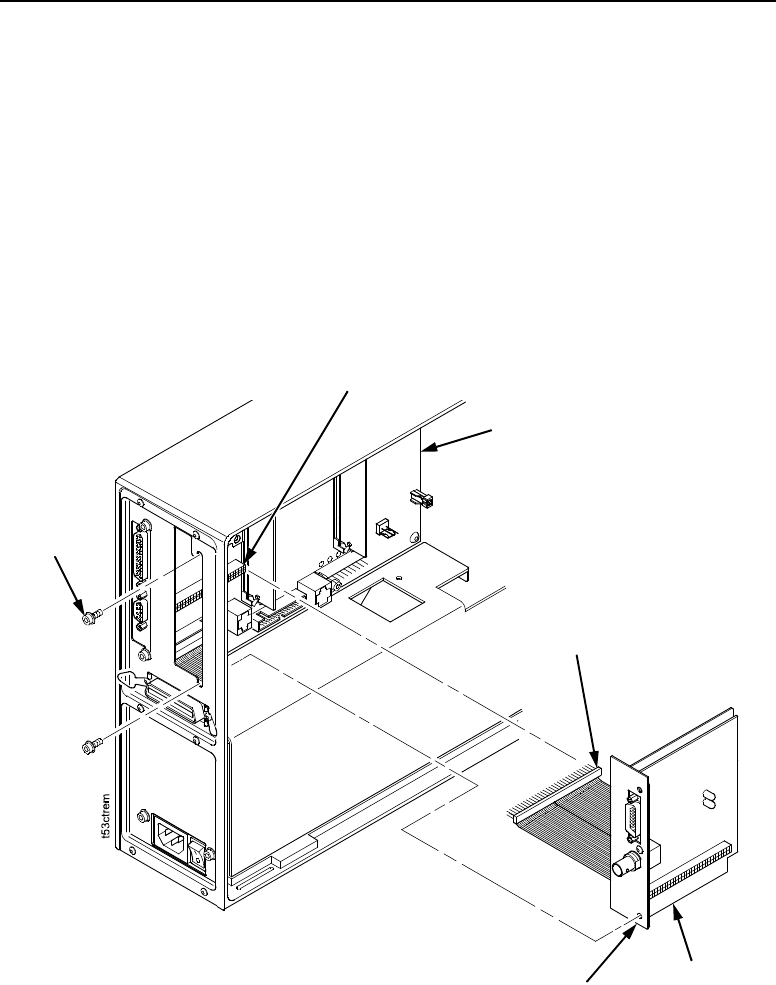

Figure 3. Removing the Expansion-CT Subassembly
Screw (2)
Expansion-CT
Subassembly
Controller PCBA
CT Adapter Plate
Expansion-CT
Cable
Expansion-CT Port
