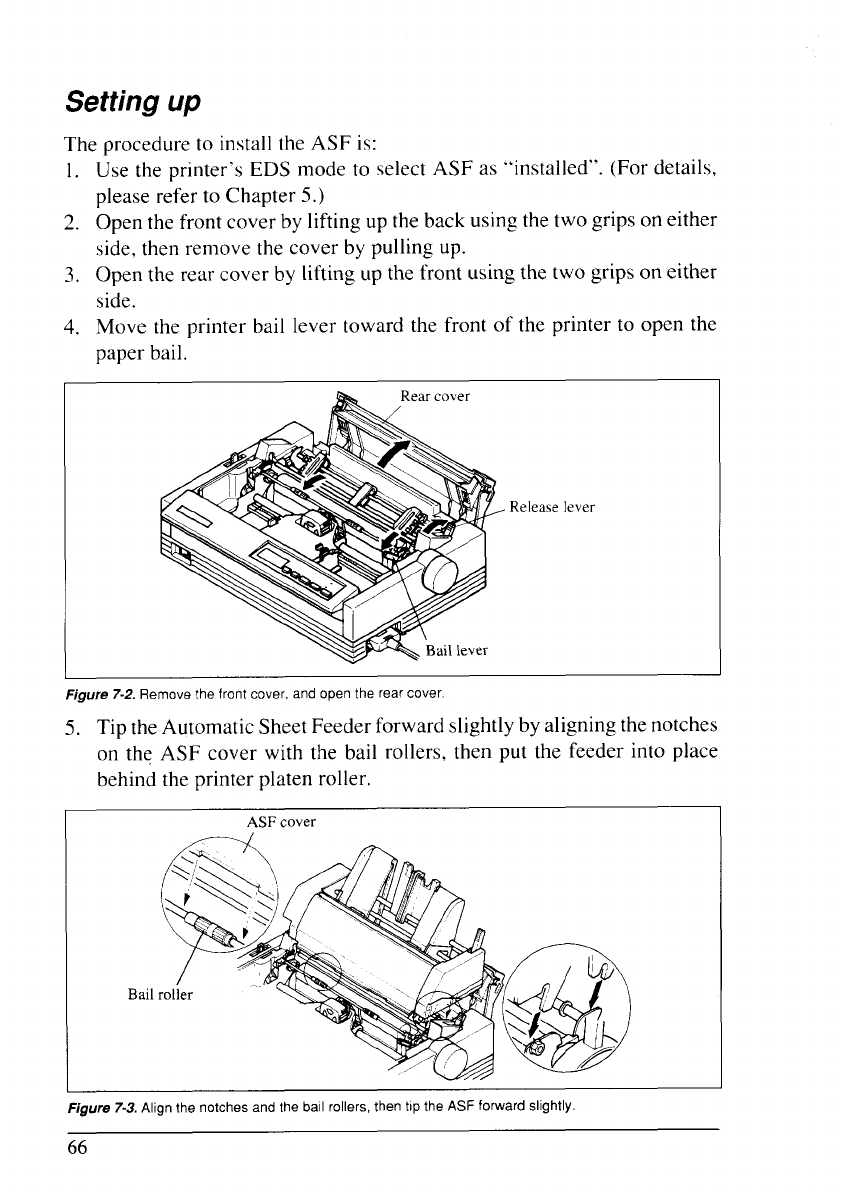

Setting up
The procedure to install the ASF is:
1. Use the printer’s EDS mode to select ASF as “installed”. (For details,
please refer to Chapter 5.)
2. Open the front cover by lifting up the back using the two grips on either
side, then remove the cover by pulling up.
3. Open the rear cover by lifting up the front using the two grips on either
side.
4. Move the printer bail lever toward the front of the printer to open the
paper bail.
Releaselever
Figure 7-2.Removethe front cover,and open the rear cover
5. Tip the Automatic Sheet Feeder forward slightlyby aligning the notches
on the ASF cover with the bail rollers, then put the feeder into place
behind the printer platen roller.
ASF cover
Figure 7-3.Align the notchesand the bail rollers,then tip the ASF forward slightly
66
