7-2
WHEN THE GRAPHIC SYMBOLS FLASH ON THE TOUCH PANEL
REPLACE TONER BAG symbol
Flashes when the toner bag becomes full of used
toner. Please call your service technician to ask to
have the used toner bag replaced with a new one.
Page 7-8
INVERTER MISFEED symbol
Flashes if a paper misfeed occurs in the inverter
during duplex copying.
Page 7-12
SADDLE STITCH UNIT MISFEED symbol
Flashes if a paper misfeed occurs inside the saddle
stitch of the finisher (option). Page 7-19
FINISHER/HOLE PUNCH UNIT MISFEED
s
ymbol
Flashes if a paper misfeed occurs inside the finisher
(optional) or the hole punch unit (optional).
Page 7-17, 7-18
CALL SERVICE symbol
Flashes if inspection and maintenance by your service
technician become necessary.
Page 7-28
INSERTER UNIT MISFEED symbol
Flashes if a paper misfeed occurs in the inserter unit
(optional).
Page 7-16
CHECK ORIGINALS symbol
Flashes if an original misfeed occurs inside the
reversing automatic document feeder.
Page 7-10
PAPER EXIT MISFEED symbol
Flashes if a paper misfeed occurs at the paper exit.
Page 7-12
PAPER PATH MISFEED symbol
Flashes if a paper misfeed occurs on the paper
path inside the copier. Page 7-12
BYPASS MISFEED symbol
Flashes if a sheet of paper fails to be fed into the
copier during bypass copying. Page 7-15
REPLACE TONER CARTRIDGE symbol
Flashes when the toner cartridge runs out of toner.
Page 7-6
EXTERNAL LCF MISFEED symbol
Flashes if paper fed from the External LCF
(optional) is misfed.
Page 7-15
DRAWER MISFEED symbol
Flashes when paper fed from one of the drawers
is misfed.
Page 7-12
DUPLEXER MISFEED symbol
Flashes if a paper misfeed occurs inside the
automatic duplexer.
Page 7-12
1.

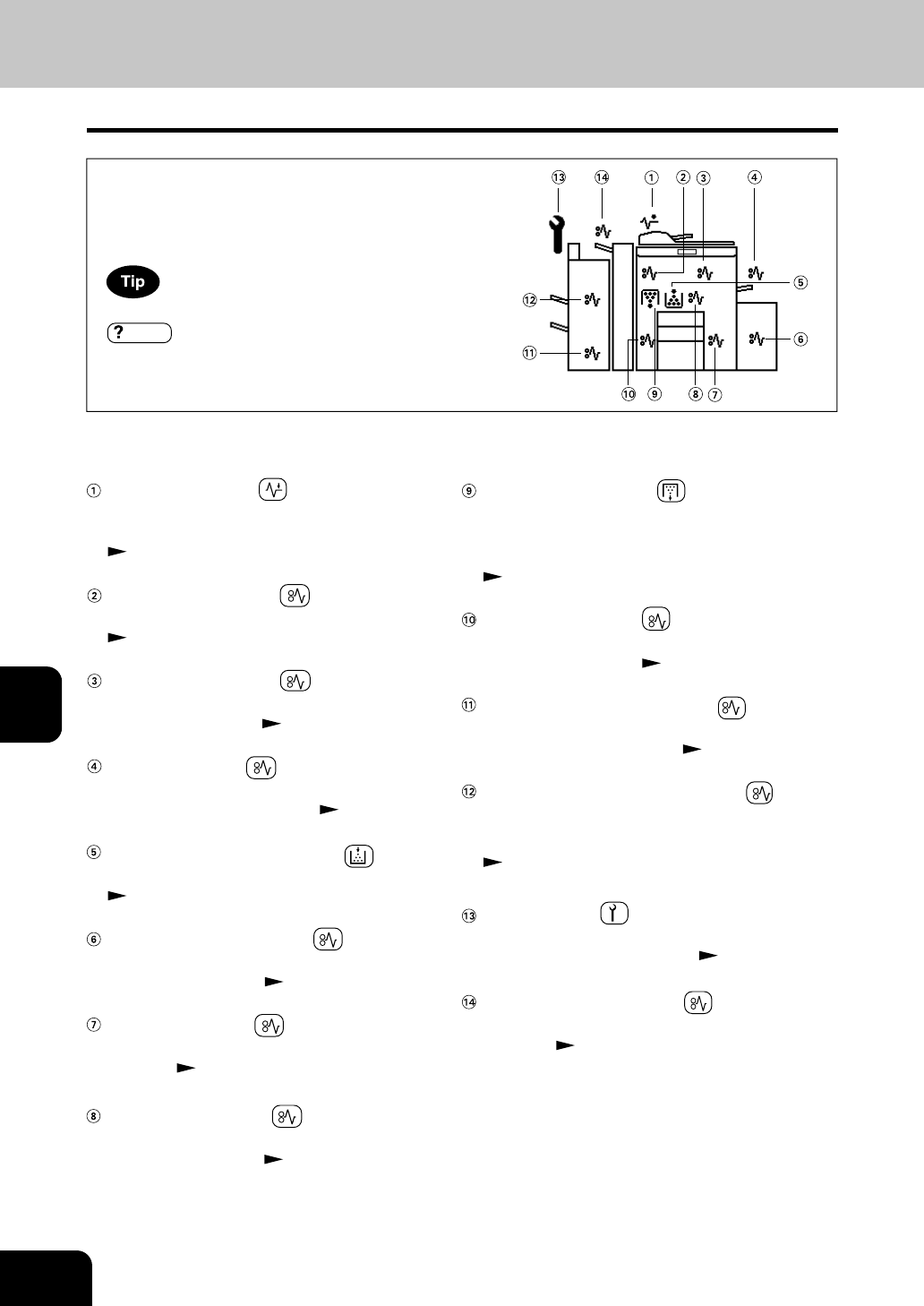

DESCRIPTION OF THE FLASHING GRAPHIC SYMBOLS
The graphic display on the touch panel shows the status of
the copier. When one of the graphic symbols flashes,
take the appropriate action referring to the page shown.
When one of the graphic symbols flashes, press the
HELP key to display the guidance.
