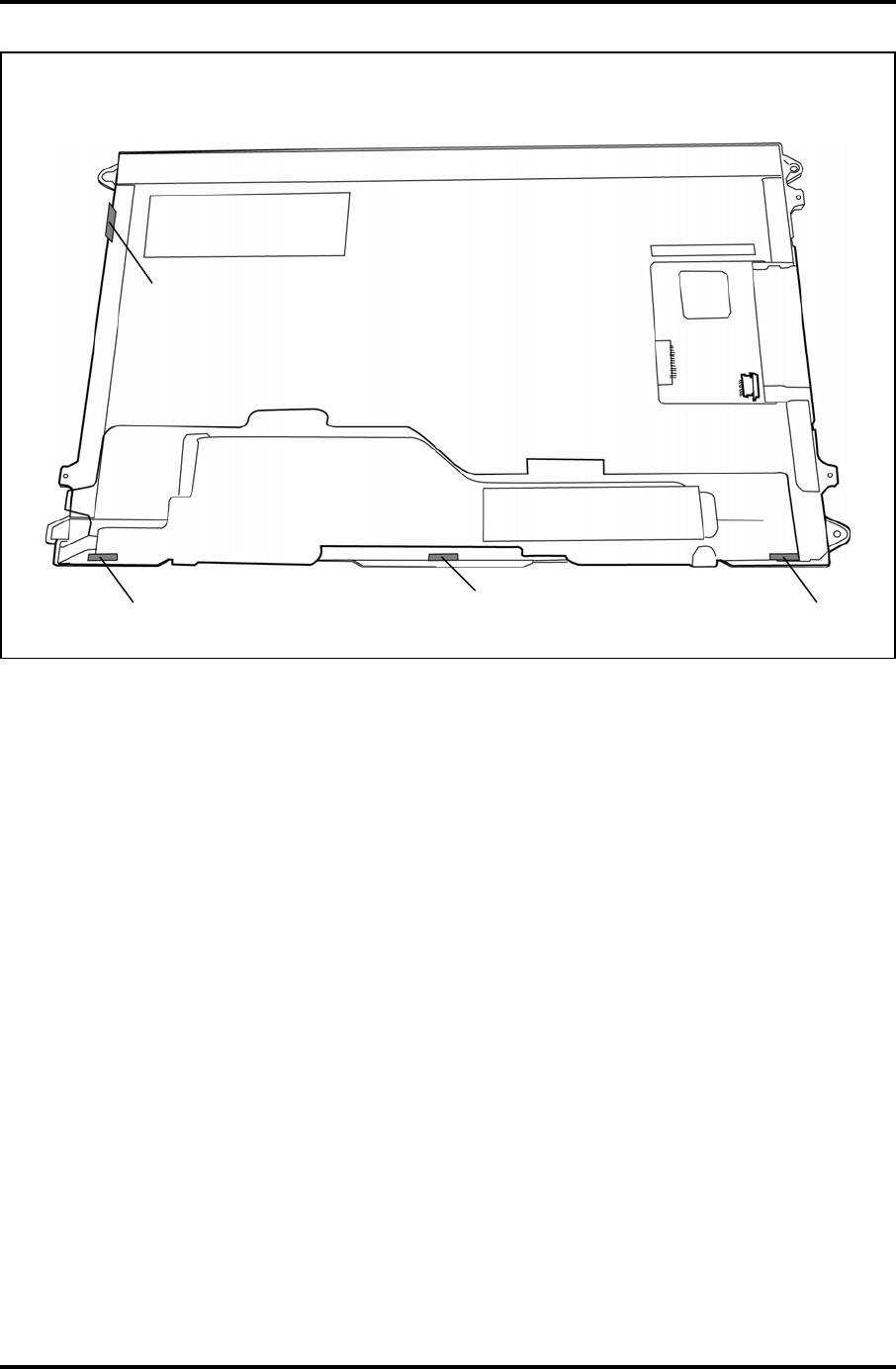

Make sure the digitizer is inserted under the metal guides.
Do not make a gap between the digitizer and LCD.
Guide
Guide
Guide
Guide
3. Set the LCD unit/digitizer on the touch panel and stick the acetate tapes in place.
4. Connect the touch panel cable to the connector on the LCD assembly and stick the
glass tape in place.
5. Stand the LCD assembly on the display cover and connect the digitizer cable and
LCD cable on the back of the LCD assembly.
6. Turn up the insulator and stick two glass tapes on each connector.
4-102 [CONFIDENTIAL] PORTÉGÉ M700/M750 Maintenance Manual (960-661)
