Toshiba TECRA M5 Laptop User Manual



3-8 User’s Manual
Getting Started

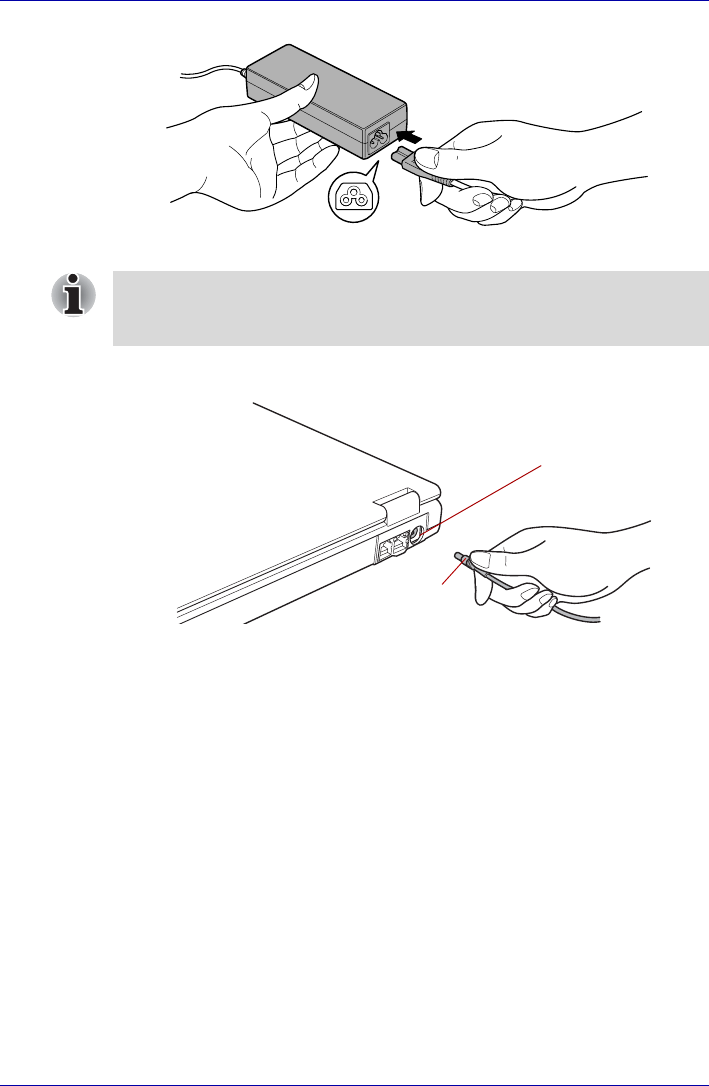

Figure 3-3 Connecting the power cord to the AC adaptor (3-pin plug)
2. Connect the AC adaptor’s DC output plug to the DC IN 15V jack on the
back of the computer.
Figure 3-4 Connecting the adaptor to the computer
3. Plug the power cord into a live wall outlet. The Battery and DC IN
indicators on the front of the computer should glow.
Opening the display
The computer’s LCD display panel can be opened in a wide range of
angles for optimal viewing.
1. Slide the display latch on the front of the computer to unlatch the
display panel.
The Universal AC Adaptor and power cord bundled with this product may
differ depending on the product model. Depending on the model, a 2-pin
plug or 3-pin plug set of the above may be bundled.
DC IN 15V jack
AC adaptor's DC
output plug
