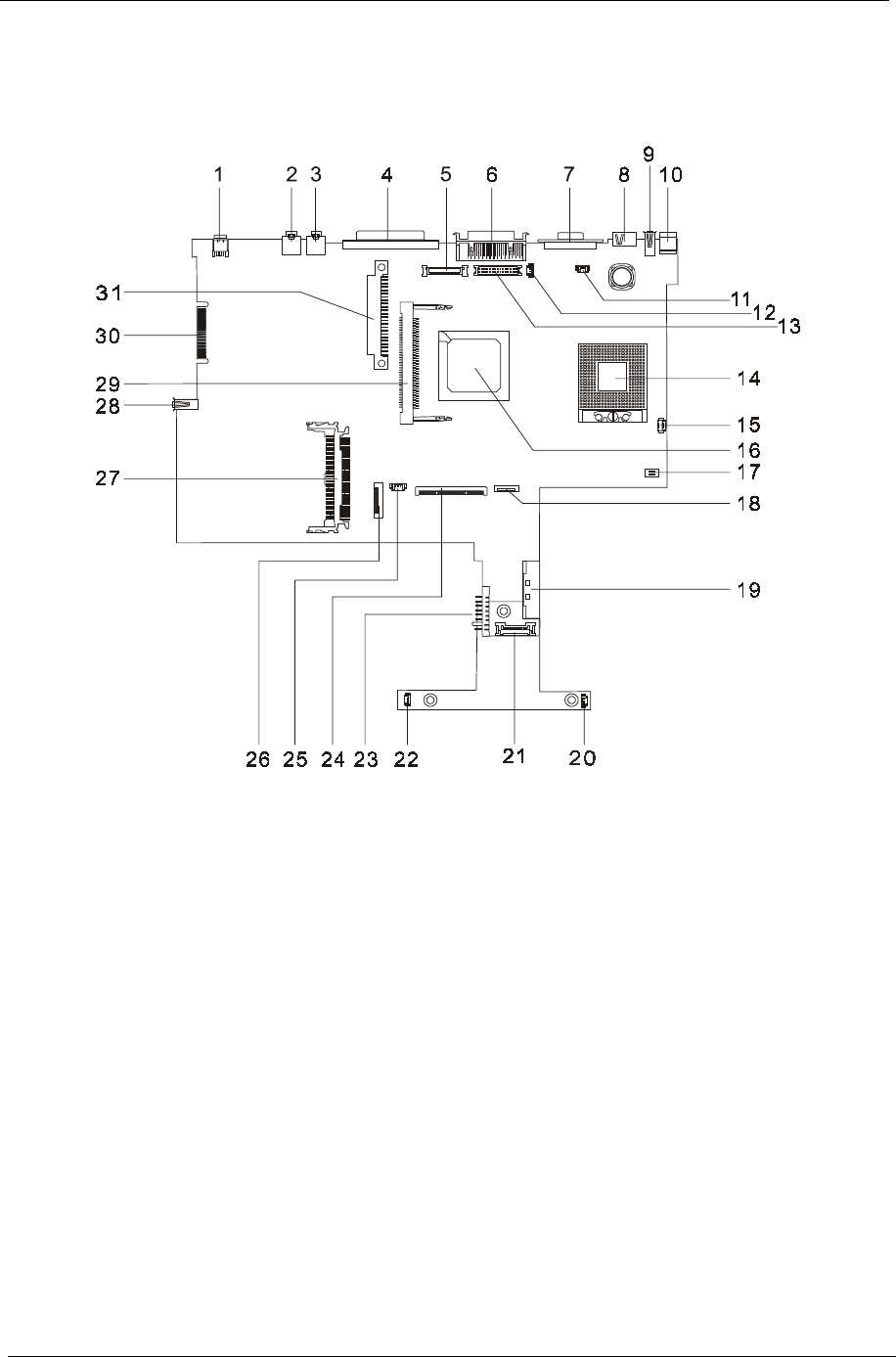

Board Layout
Top View
1 IEEE 1394 17 SW2 Setting
2 Line-in Port 18 Touch Pad Connector
3 Line-out Port 19 External CD/DVD-ROM Module Connector
4 Parallel Port 20 Speaker Connector
5 LCD Coaxial Cable Connector 21 Daughter Board Connector (on main board, under
daughter board)
6 Port Replicator 22 Speaker Connector
7 CRT Connector 23 Battery Connector
8 TV-out Port 24 Keyboard Connector
9 USB Port 25 RTC Battery Connector
10 DC-in Port 26 Cardbus/SmartCard Socket
11 LCD Cover Switch Connector 27 Cardbus connector
12 Microphone-in Port 28 USB Port
13 LED/Inverter Board Connector 29 Mini PCI Connector
14 CPU Socket 30 Golden Finger
15 FAN Connector 31 HDD Connector
16 North Bridge
