iMac G5 (20-inch iSight) Take Apart —Power Supply, DC/DC, Inverter 11 3
Replacing the DC/DC Power Supply/Inverter
Route the inverter cable under the metal chassis frame. Check the routing of the cable so it 1.
doesn’t get pinched under the chassis.
Install the screws on the chassis frame and the AC lter ground screw.2.
Replace the CPU fan. 3.

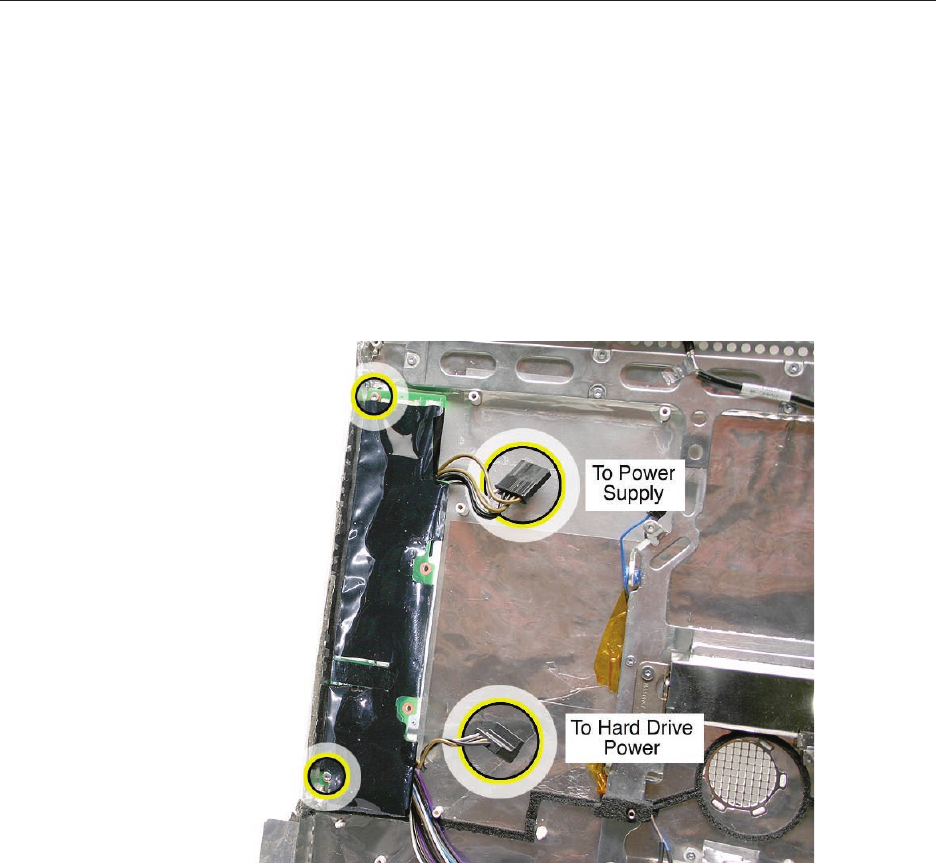

Connect the cables to the AC/DC power supply and to the hard drive.4. Replace the two
screws connecting the DC/DC power supply/inverter to the rear housing.
Replace the AC/DC power supply.5.
Replace the hard drive.6.
Replace the hard drive fan.7.
Replace the logic board.8.
Replace the speakers.9.
Replace the display panel.10.
Replace the IR Board.11 .
Replace the lower EMI shield.12.
Replace the front bezel.13 .
Replace the memory access door.14.
