Chapter 10. The DS Storage Manager - logical configuration 219
The screen will advance to the Specify storage image parameters section shown in
Figure 10-35.

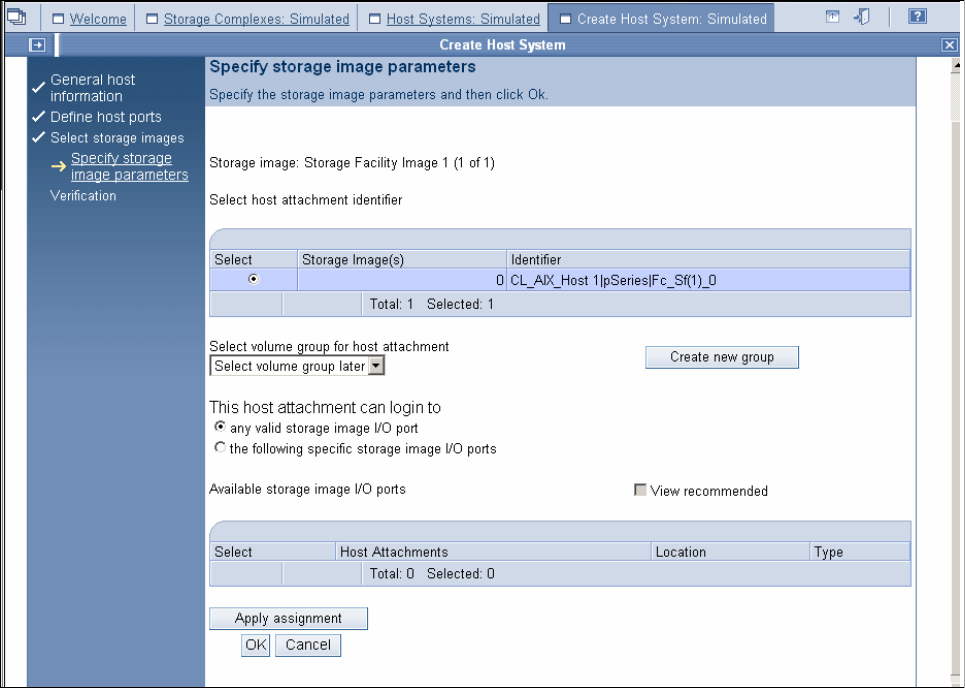

Figure 10-35 Specify storage image parameters panel
Make the following entries and selections on the Specify storage image parameters panel:
1. Click the Select volume group for host attachment pull-down and highlight
Select volume
group later
.
2. Click
any valid storage image I/O port under the “This host attachment can login to”
field.
3. Click
Apply assignment and OK.
4. Verify and click Finish.
10.3.4 Creating arrays from array sites
Under Configure Storage, click Arrays. The screen will advance to the Create Array:
Simulated panel. Click the Storage complex pull-down, highlight the storage complex you
wish to configure, click
Create and Go (the panel is not pictured here). The screen will
advance to the Definition method panel shown in Figure 10-36 on page 220.
