Chapter 9: Sample Configurations
___________________________________________________________________
9-32
Sample 5 – Dynamic MicroBand VoIP
Sample 5 - Dynamic MicroBand VoIP
Static IP / Direct Internet
Connection
Magnum/Marathon A
Ethernet port
Dynamic IP / Direct Internet
Connection
Magnum/Marathon B
Ethernet port
Carrier Class IP Network
or
Public INTERNET
DSL / Cable Modem
DSL / Cable Modem
Telephone
Sync/Async Data Terminal
Equipment
Telephone
Sync/Async Data Terminal
Equipment
Public Network: 66.67.68.0 / 24 Private Network: 172.16.1.0 / 24
E1 IP Address: 66.67.68.250 / 24
MVoIP Source IP Address: 66.67.68.251 / 24
66.67.68.254
172.16.1.254
E1 IP Address: 172.16.1.250 / 24
MVoIP Source IP Address: 172.16.1.251 / 24
dsl router
dynamically obtains IP
address from the ISP
In the above diagram, a simple IP network will be used to transport Micom Marathon traffic
across the internet using Dynamic MVoIP.

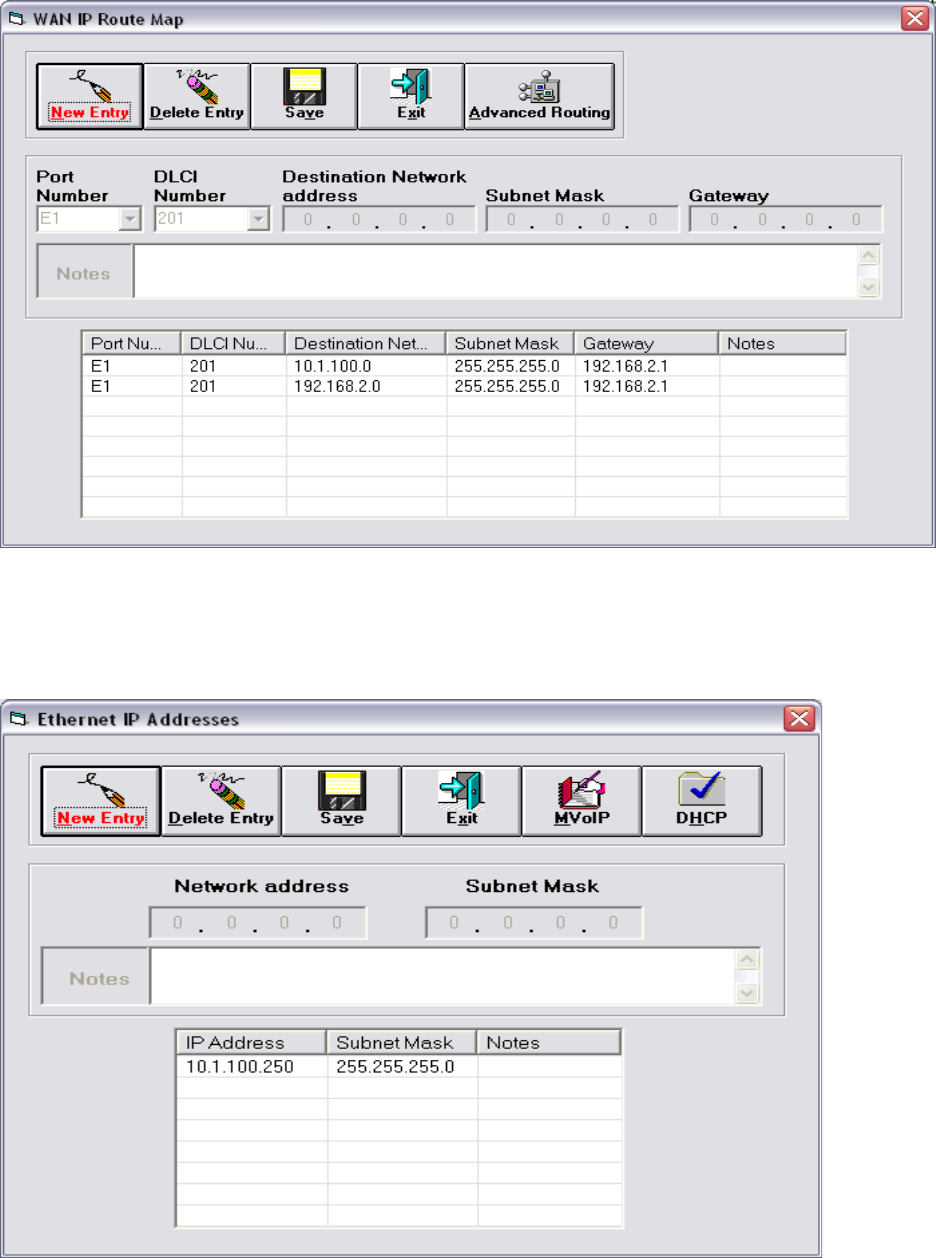

Configuration Files used in this example
DVoIP-A.CF2
DVoIP-B.CF2
