GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
The syslog message includes the following fields:
Date
Time
Module (AAA in the example above).
Severity (I in the example above).
Action (DISSCONNECT in the example above).
Description (http connection for user admin, source 10.5.70.19
destination 10.5.234.201 TERMINATED in the example above).
Use the buttons at the bottom of the screen to perform the following actions:
Click CLEAR to remove the messages from the buf
fered logs in the memory.
Click REFRESH to update the screen with the latest messages in the log.
Click CANCEL to cancel the configuration and reset the data to the previous values.
Server Log
Use the Server Log screen to allow the switch to send log messages to the remote logging
hosts configured on the system.
To add a remote log server:
1. Select Monitoring
Logs Server Log.

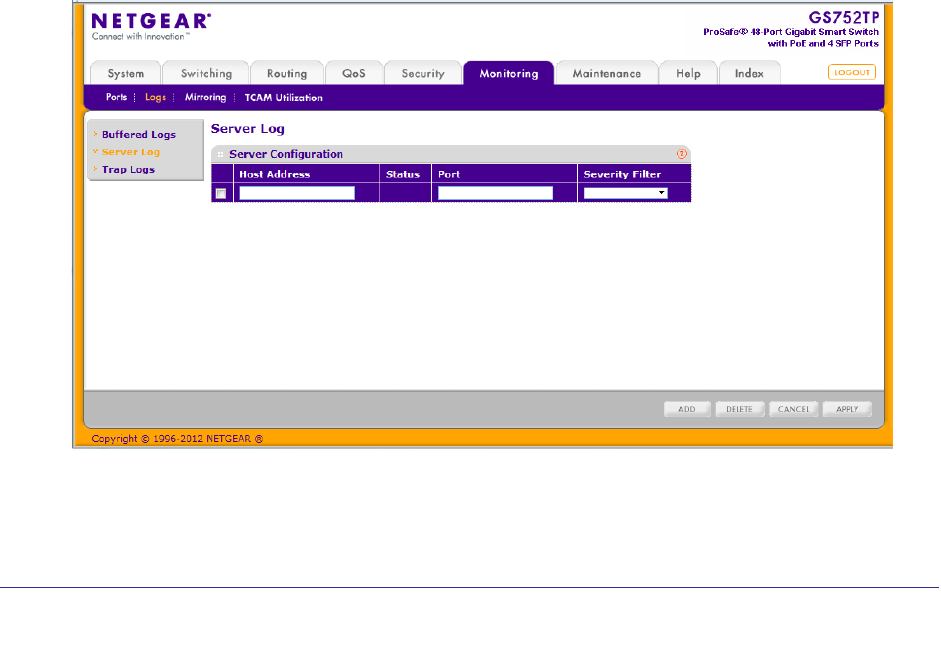

The following screen displays:
2. Specify the following settings and click Add.
Host Address. Specify the IP address or host name of the host configured for syslog.
