GS752TP, GS728TP, and GS728TPP Gigabit Smart Switches
LLDP Configuration
Use the LLDP Configuration screen to specify LLDP and LLDP-MED parameters that are
applied to the switch.
To configure global LLDP settings:
1. Select System > LLDP > Basic > LLDP Configuration.

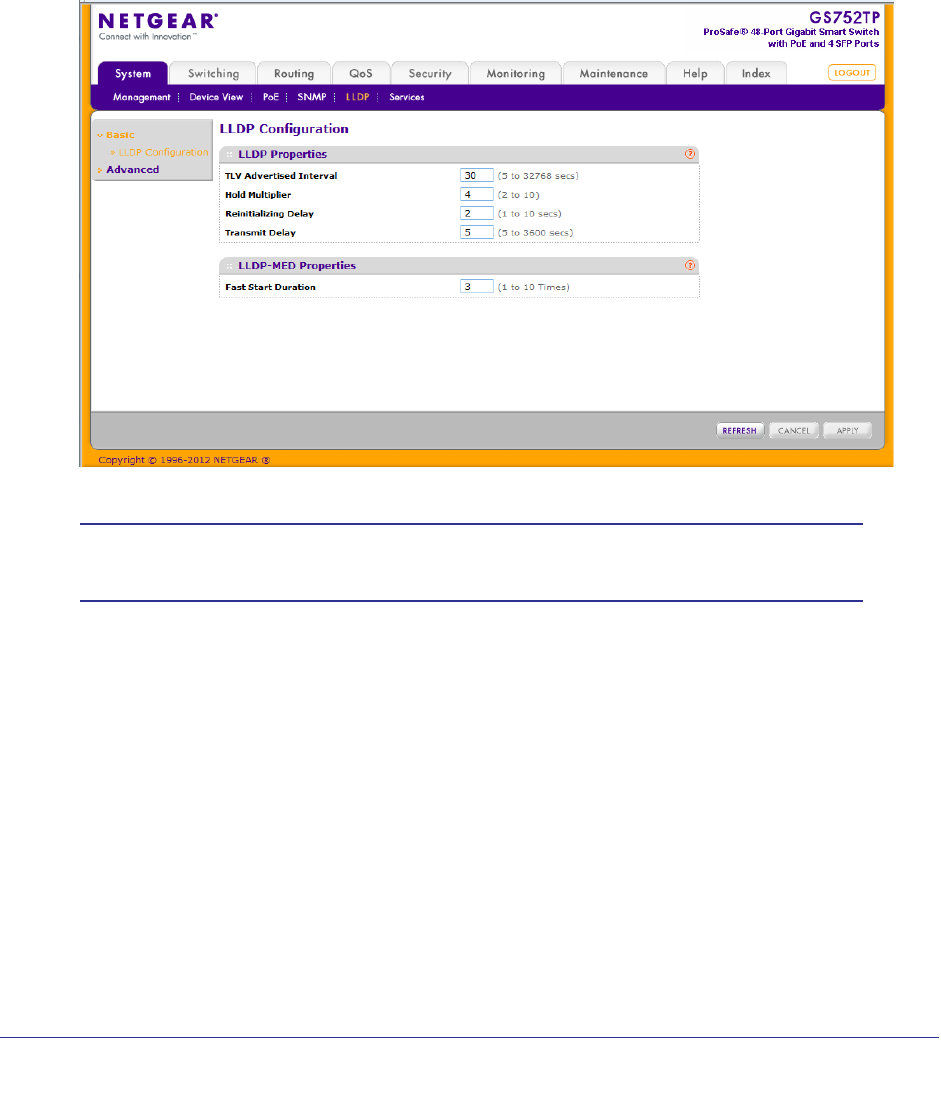

The following screen displays:
Note: You can also access the LLDP Configuration screen by selecting
System > LLDP > Advanced > LLDP Configuration.
2. Configure the following LLDP settings:
TL
V Advertised Interval. Specify the interval at which frames are transmitted. The
default is 30 seconds, and the valid range is 5–32768 seconds.
Hold Multiplier. Specify multiplier on the transmit interval to assign to
Time-to-Live
(TTL). The default is 4, and the range is 2–10.
Reinitializing Delay. Specify the delay before a reinitialization.
The default is 2
seconds, and the range is 1–10 seconds.
T
ransmit Delay. Specify the interval for the transmission of notifications. The default
is 5 seconds, and the range is 5–3600 seconds.
3. T
o change the LLDP-MED properties in the Fast Start Duration field, specify the number of
LLDP packets sent when the LLDP-MED Fast Start mechanism is initialized.
